6063 Grade Aluminum Window Channel Extrusion PVDF Painted T3 Temper

Basic Information
Place of Origin: China
Brand Name: Ruicheng
Model Number: Aluminum Window & Door Profile-010
Price: To Be Negotiated
Packaging Details: carton/poly bag/shrink film/pallet/customized
Delivery Time: 15-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Detail Information
Material: Aluminum Thickness: 1mm-3mm Or Customized
Surface Treatment: Anodized,polished,powder Coating,mill Finish Height: 3.-8.5mm Or Custiomized
Finish: Various Anodizing/polishing/brushing/coating Length: 3-6 M Or Customized Length
Application: Aluminum Window & Door Size: Accept Customized
Temper: T3-T8
High Light:

PVDF Painted aluminum window profile


T3 aluminum window channel extrusionaluminum window channel extrusion


6063 aluminum window channel extrusion

Product Description

6063 Grade Sliding Window Track Anodized Aluminum Profile With Polishing


Aluminium window extrusions and doors are the most common products in architectural aluminium extrusions. In order to meet the special requirements of different customers, Otalum has developed a wide range of window and door systems, including aluminium sliding windows, aluminum casement windows, aluminium tilt and turn windows, top hung sliding aluminium windows, aluminium casement doors, etc. At here, you can easily save your time and money for cutting new dies.


If the existing products are not suitable for your special purpose, our experienced engineers can help you to design your own custom aluminium extrusions and realize it.


Aluminum extrusions from our architectural systems are available in a variety of finishes which contain mill finish, clear anodized aluminum including 2-step electrolytic anodizing, powder coating, PVDF painting and wood-gram finish. As a mature aluminium extrusions manufacturer, Otalum also offers aluminium extrusion fabrication services on eligible inquiries.




The Production Process of Aluminum Window Profile

1. Ingot casting

The process contains the ingredients, melting, casting, homogenization. This is the main process of certain chemical composition and size of the ingot.

2. Extrusion

Extrusion includes an automatic production line composed of ingot heating, extrusion, cooling, straightening, cutting and other processes.

The ingot heating temperature is controlled at 400℃~520℃, too high or too low will directly affect the extrusion.

3. Heat treatment

Through different systems for quenching and aging treatment to obtain the mechanical properties of the profile. Aluminum profile aluminum windows provide materials in RCS state, that is, high temperature heat treatment and rapid cooling are performed after molding and artificial aging.

4. Surface treatment

The most common steps are anodizing, electrophoresis, powder coatings and fluorocarbon coatings so that the surface can have different colors and good appearance. Surface treatment can enhance the aesthetic appearance of the profile and prolong the service life of the aluminum window profile.





Item Type Aluminium Profiles for Windows and Doors
Material 6000 Series
Temper T3-T8
Application Windows, doors, curtain walls, rails, decoration profile.
Color Customized Color
Thickness 1.General profiles thickness: 0.8mm—1.4mm
2.Anodizing protection thickness: 8-12 micron
3.Normal powder coated thickness: 60-100 micron
Shape Square, angled, flat, hollow, oval, triangle, U-profile, L-profile, T-profiles, H-profiles, or customized available.
Quality Control 1. Inspection at Site.
2. Inspection Before Shipping.
3. Testing Machine.
Surface treatment Anodizing, Mill finish, Electroplating, Polishing, Sandblasted, Powder coating, Silver plating, Brushed, Painted, PVDF, etc.
Deep process CNC,drilling,milling,cutting,stamping,welding,bending,assembling,Custom Aluminum Fabrication
OEM & ODM Available. our engineer can check and discuss your design, great help !
Free Samples Yes, we can provide free sample
Delivery time 15-20 days after sample confirmed & down payment, or negotiated

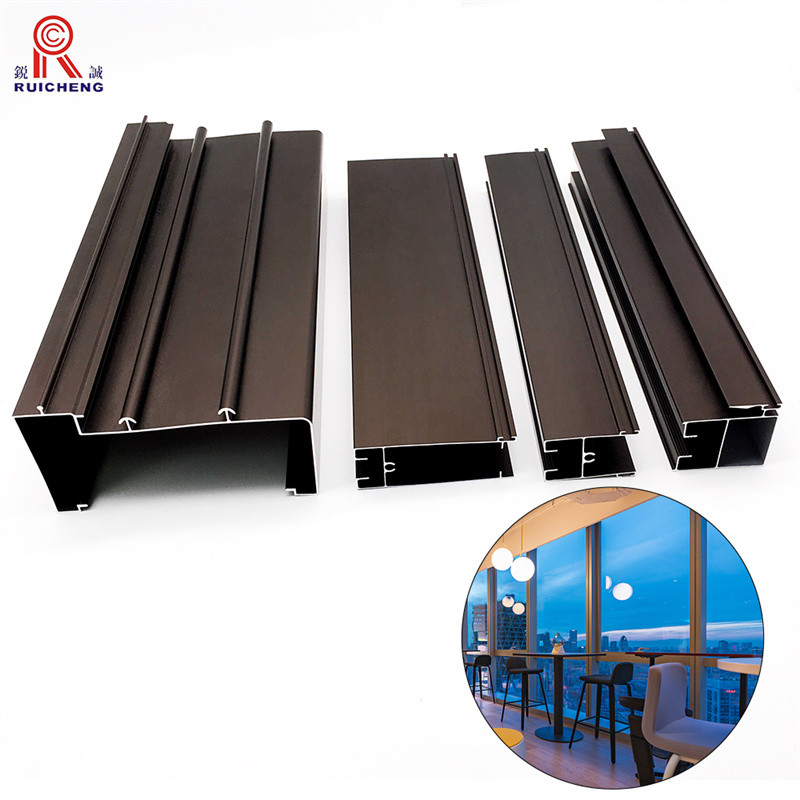

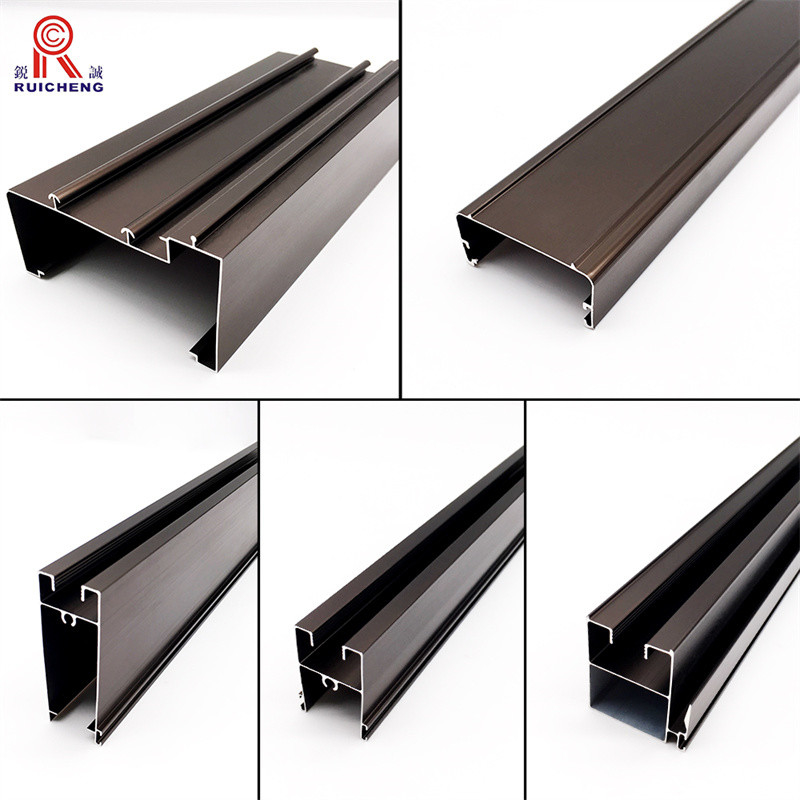

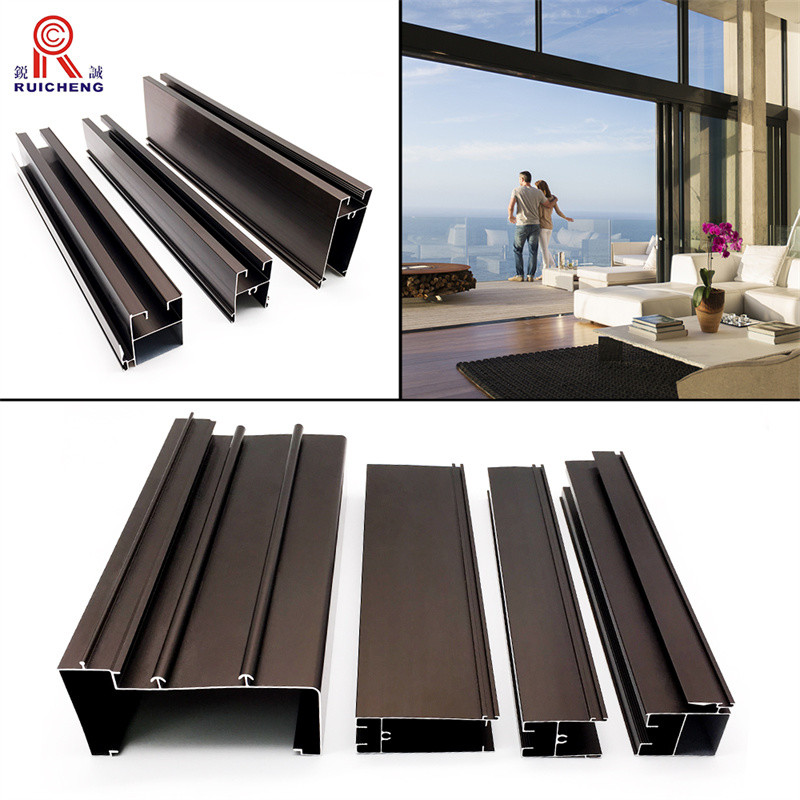

6063 Grade Aluminum Window Channel Extrusion PVDF Painted T3 Temper 06063 Grade Aluminum Window Channel Extrusion PVDF Painted T3 Temper 16063 Grade Aluminum Window Channel Extrusion PVDF Painted T3 Temper 2

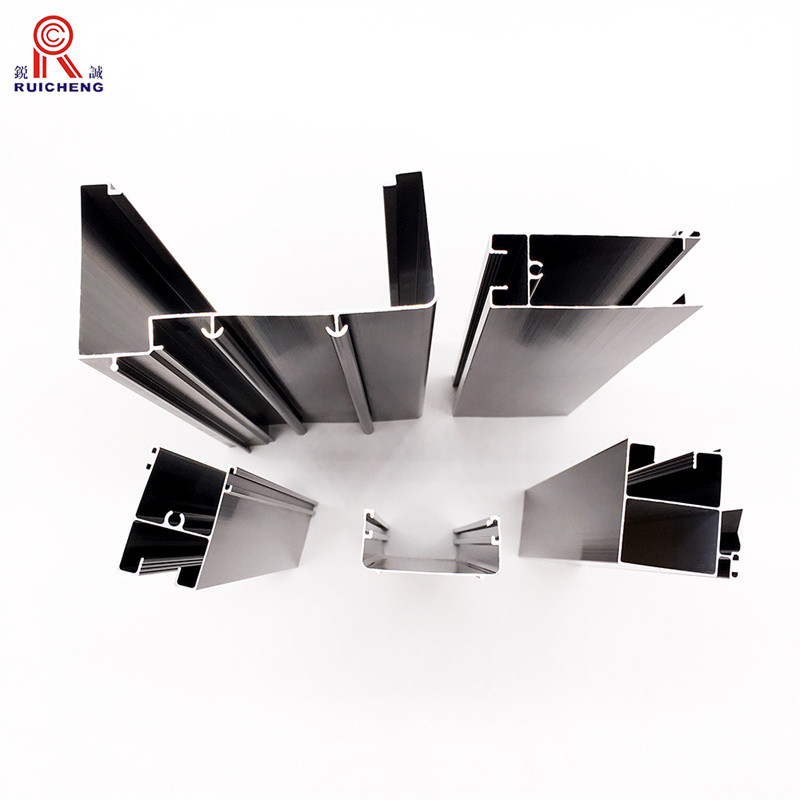

6063 Grade Aluminum Window Channel Extrusion PVDF Painted T3 Temper 3
