2.5m Aluminium Bullnose Stair Nosing , Nonradioactive Aluminium Stair Edge Nosing

Aluminium Stair Nosing Edge Trim Metal Anti Slip Staircase Protector



Application

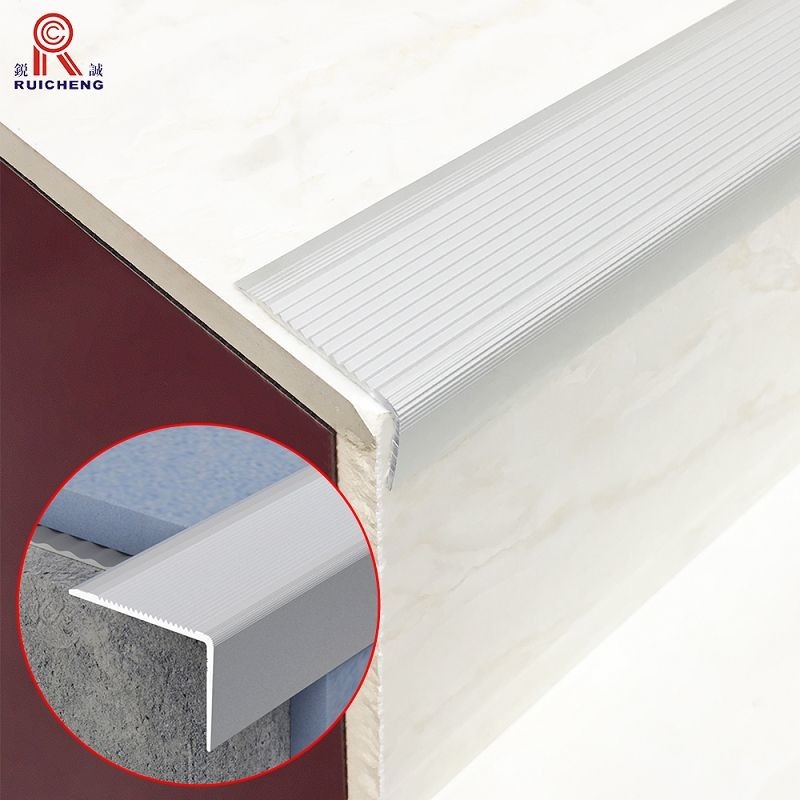

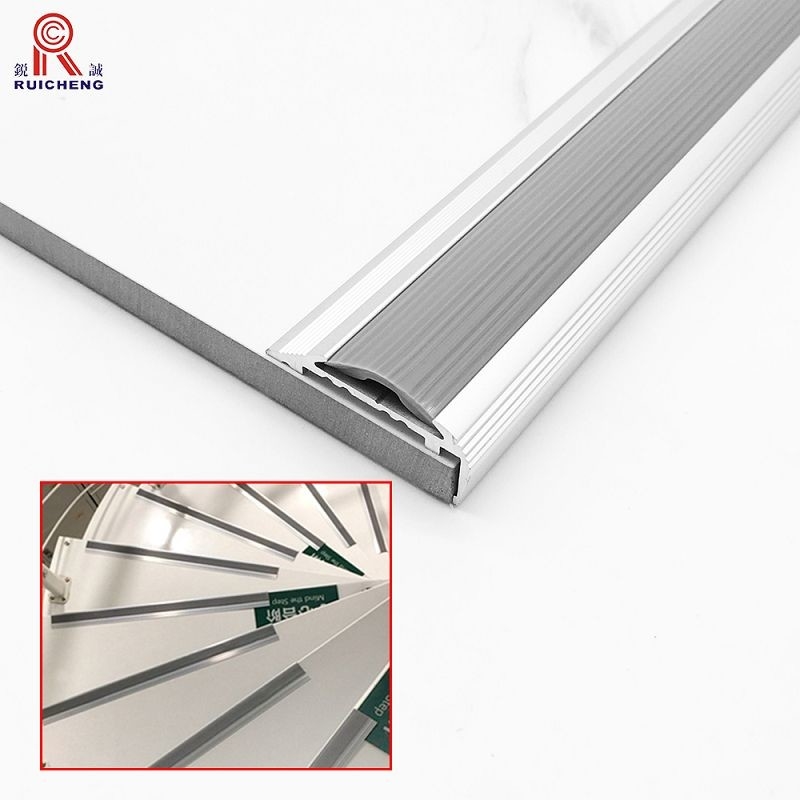

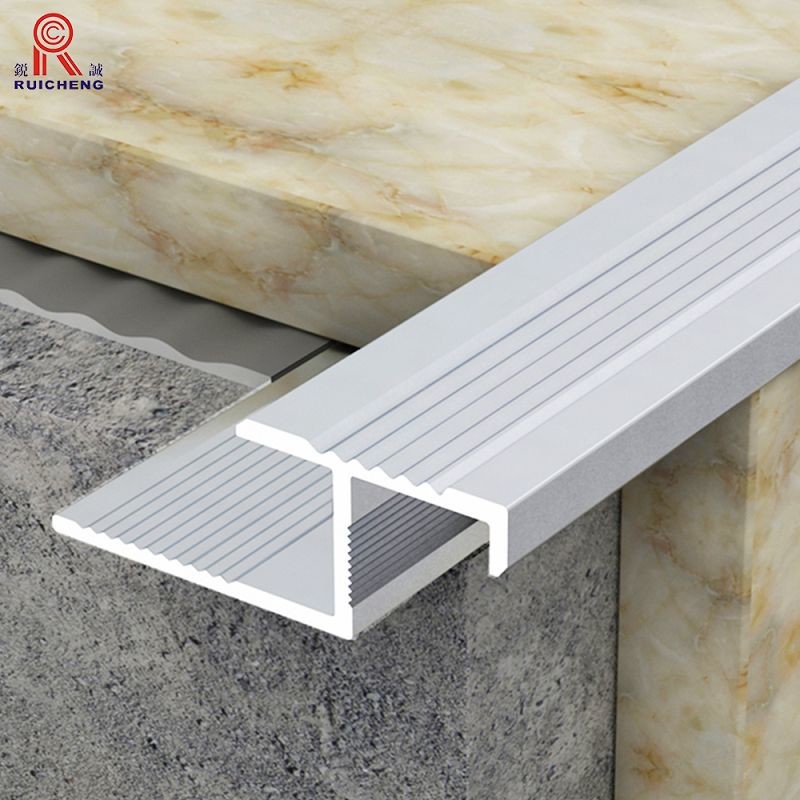

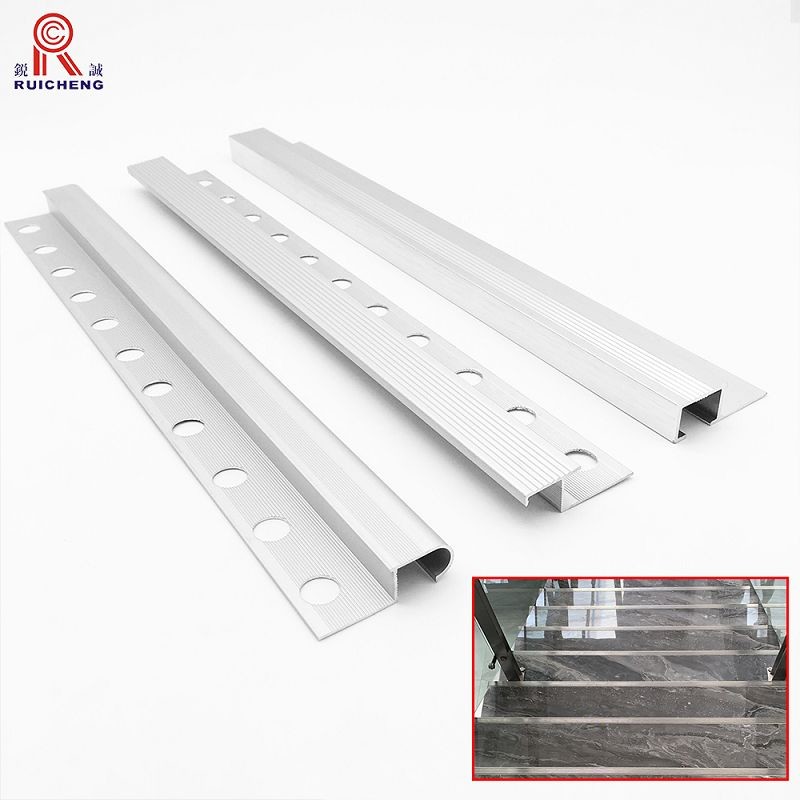

Due to their resistance to oxidation, Anodised aluminium stair nosing profiles enhance indoor and outdoor installations. The non-slip, ribbed tread profile section is available with a rounded or squared angle, perfect for retrofitting damaged stairs and concealing edge imperfections. The profile may be fastened with flathead screws or appropriate adhesive. This stair nosing profile is equipped with a slightly rounded edge and grooved top surface. The carved internal cavity soundly adheres to pre-existing stairs.


Feature

• Manufactured from high-grade aluminium;
• Two glow-in-the-dark strips;
• Ribbed, anti-slip surface;
• Dimensions: 1000 x 35 x 14 mm;
• Thickness: 1.5 - 4 mm;
• Colour: silver;
• Photoluminescence value of 450 mcd. In comparison, toys such as glow-in-the-dark stars have a photoluminescence value of around 20 mcd;
• Glow duration: 8-12 hours;
• Non-radioactive and non-toxic;
• No power or batteries required;
• Easy to install using adhesive caulk or screws.

Use


Installation

1. Select the profile according to the tile thickness and format and the subassembly thickness.

2. Using a notched trowel, apply thin-set mortar over the area where the trapezoid perforated anchoring leg will be placed.Apply several beads of bonding compound or similar to the back side of the vertical wall section of the profile.

3. Press the perforated anchoring leg of profile into the thin-set mortar and align.

4. Trowel additional thin-set mortar over the perforated anchoring leg to ensure full coverage and support of the tile edges.

5. Solidly embed the tiles so that the tiled surface is flush with the top of the profile; the profile should not be higher than the tiled surface, but rather up to approximately 1/32" (1 mm) lower.

6. Set the tile to the integrated joint spacer, which ensures a uniform joint of 1/16" – 1/8" (1.5 – 3 mm).

7. Fill the joint completely with grout or setting material.

8. Work with materials and tools that will not scratch or damage sensitive surfaces. Setting materials must be removed immediately, especially from aluminum.
