Wall Corner Aluminium LED Strip Light Profile 3mm Thickness Recessed

Basic Information
Place of Origin: China
Brand Name: Ruicheng
Model Number: Aluminium Led Profile-012
Price: To Be Negotiated
Packaging Details: carton/poly bag/shrink film/pallet/customized
Delivery Time: 15-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Detail Information
Material: Aluminum Thickness: 0.8mm To 3mm
Surface Treatment: Polished,powder Coating,mill Finish Height: 7.5/8/8.3/8.5mm/Custiomized
Product Name: Aluminium Led Profile Temper: T3-T8
Grade: 6000 Series Shape: Round,angle
High Light:

3mm Aluminium LED Strip Light Profile


Recessed Aluminium LED Strip Light Profile


Recessed aluminium strip light channel

Product Description

Wall Mount Aluminium Led Profile Lighting Strips Corner Decorative Indoor Extruded



Our aluminium extrusions can enhance and improve all kinds of LED strip light installations. They are an ideal addition in restaurants, hotels, bars, and clubs. Small dimensions allow the profile to fit in a variety of locations such as housings interiors, exhibits, shelving units, and stair cases. They are lightweight, easily release heat, and environment friendly.



  • Our LED strip light channels are made from high-quality aluminum and other materials. The LED strip covers are sturdy and will last you ages.
  • LED strip mounting channels are available in both clear and frosted finishes so you can choose the LED light effect you like.
  • Our aluminum channels for LED strips are available in a variety of sizes from smaller strip holders perfect for staircase and under cabinet lighting to larger mounting units that can house multiple LED light strips.
  • You can customize the size, length, finish, and other features of your LED channel tracks. We can help design LED aluminum extrusions to your exact requirements.
  • LED aluminum light strip channels can be installed in any style. You can choose recessed aluminum LED profiles or surface mounted LED extrusions.
  • All our LED strip holders come with highly adhesive 3M stickers as well as mounting clips so you easily install the strip housings on any surface you like.



Extrusions can be fixed in place using countersink screws, straight into the extrusion. Alternatively, you can purchase fixing brackets if you prefer. These can be attached in place, and once they are in position, your extrusion can be clipped onto them.

  1. Ensure the channel is cut to the length you require and screw the mounting bracketsinto the surface of choice at 1m intervals.
  2. Peel the adhesive backing off the run of LED tape and stick the length of the tapeinto the channel.
  3. Clip the diffuser onto the channel.
  4. Insert the end clips onto each end of the profile, ensuring the 2 core cable is threadthrough the hole in one of the end caps. This cable will attach to the driver or powersource.
  5. Press the profile firmly into the mounting brackets so they click into place.





Product Name LED Aluminum Profile
Material Aluminum Alloy
cover PC Diffuser
Accessories PC end caps, Metal clips
Surface Treatment Anodized silver. other colors on request
Standard Length 1/2m(Customized length is also available)
Installation Recessed
Warranty 5 years
Delivery Time 3-6 working days for sample
our Advantage Design according to your decoration plan

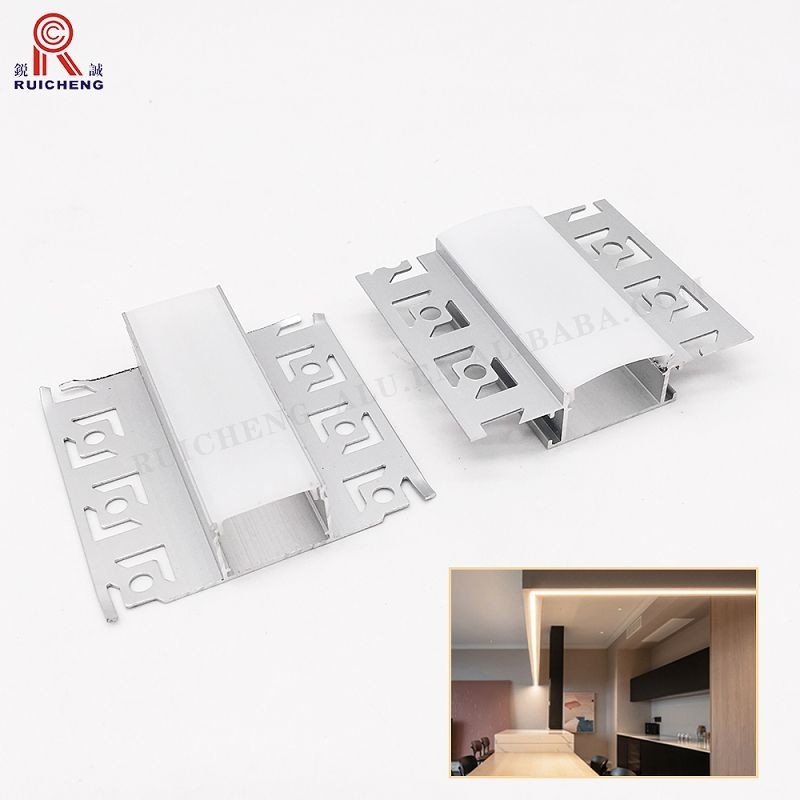

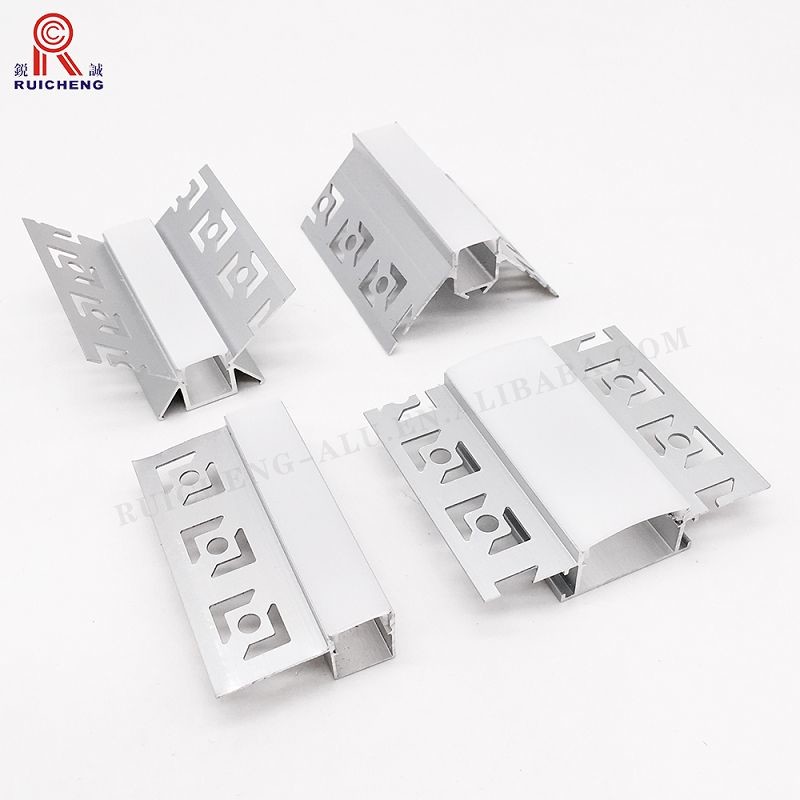

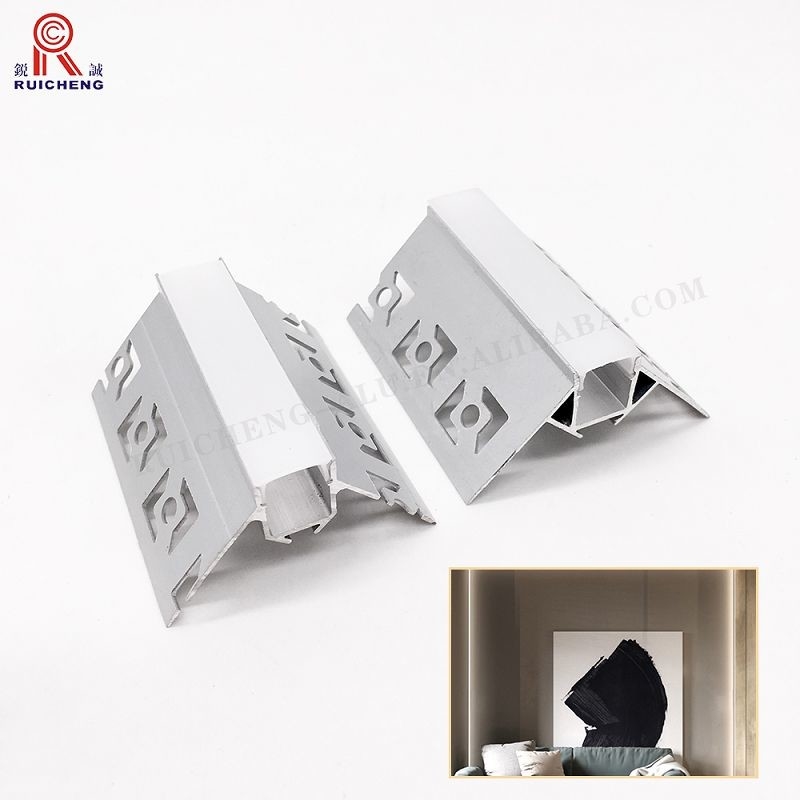

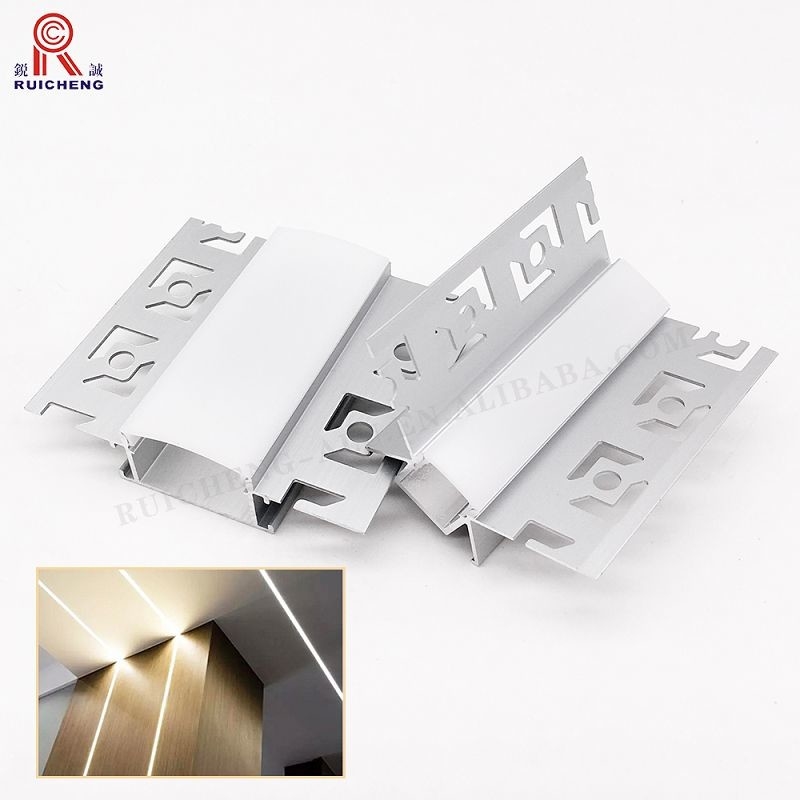

Wall Corner Aluminium LED Strip Light Profile 3mm Thickness Recessed 0Wall Corner Aluminium LED Strip Light Profile 3mm Thickness Recessed 1Wall Corner Aluminium LED Strip Light Profile 3mm Thickness Recessed 2
