Brushed Ceramic Tile Metal Edge Trim , 8.5mm Aluminum Trim Tile L Shape

Basic Information
Place of Origin: China
Brand Name: Ruicheng
Model Number: Aluminum L Shape Tile Trim-001
Price: To Be Negotiated
Packaging Details: carton/poly bag/shrink film/pallet/customized
Delivery Time: 15-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Detail Information
Material: Aluminum Tile Accessory Type: Tile Trims
Thickness: 0.3mm To 3mm/customization Length: 2.4m
Color: Customized Surface Treatment: Mill Finish
Height: 8.3/8.5mm/Custiomized Punching Hole Shape: Oval/ Letter/customized
High Light:

L Shape aluminum trim tile


8.5mm ceramic tile metal edge trim


Brushed ceramic tile metal edge trim

Product Description

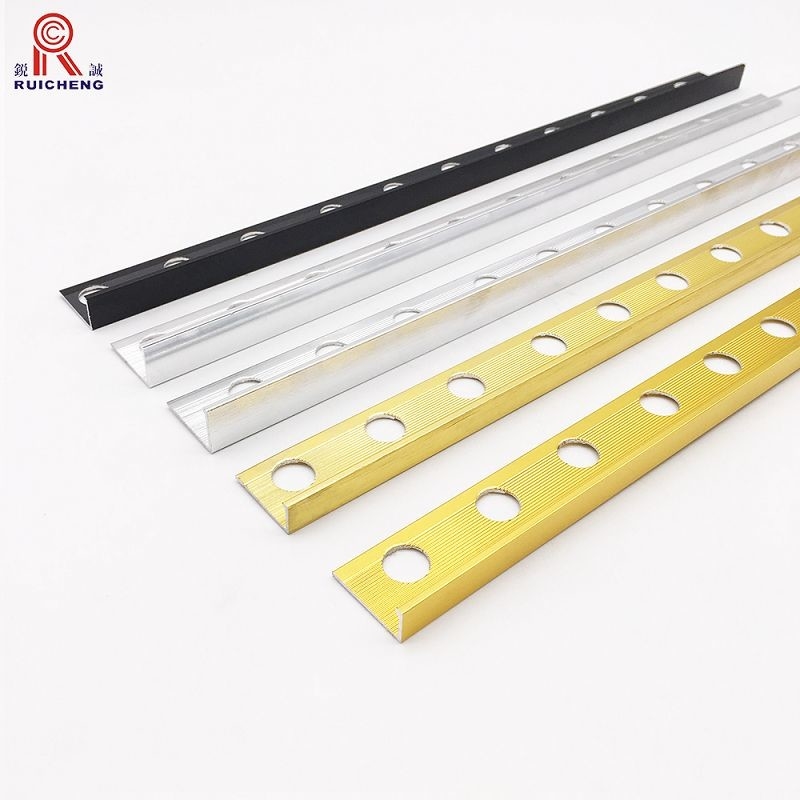

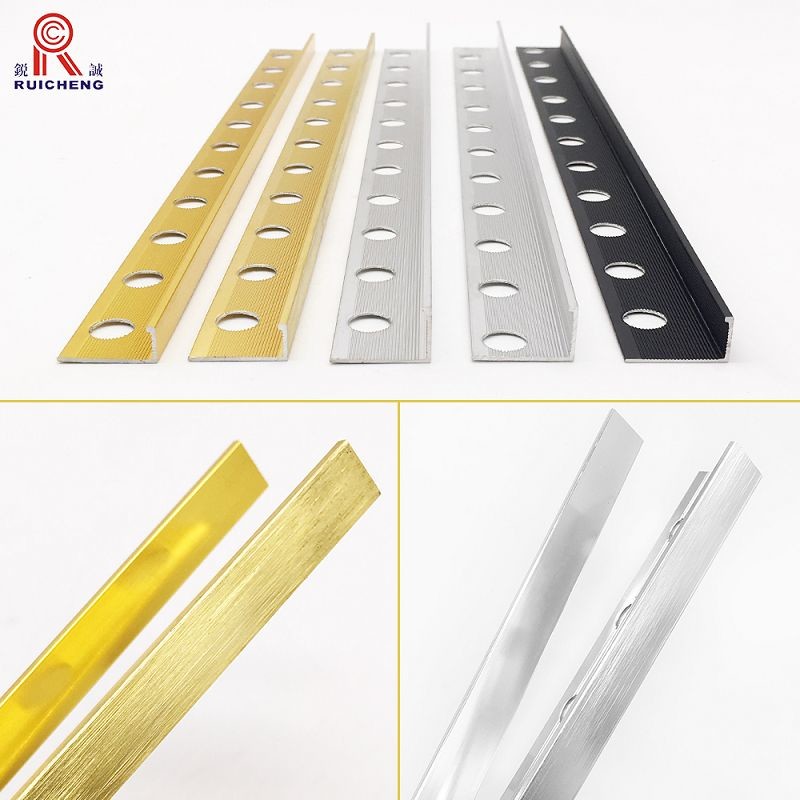

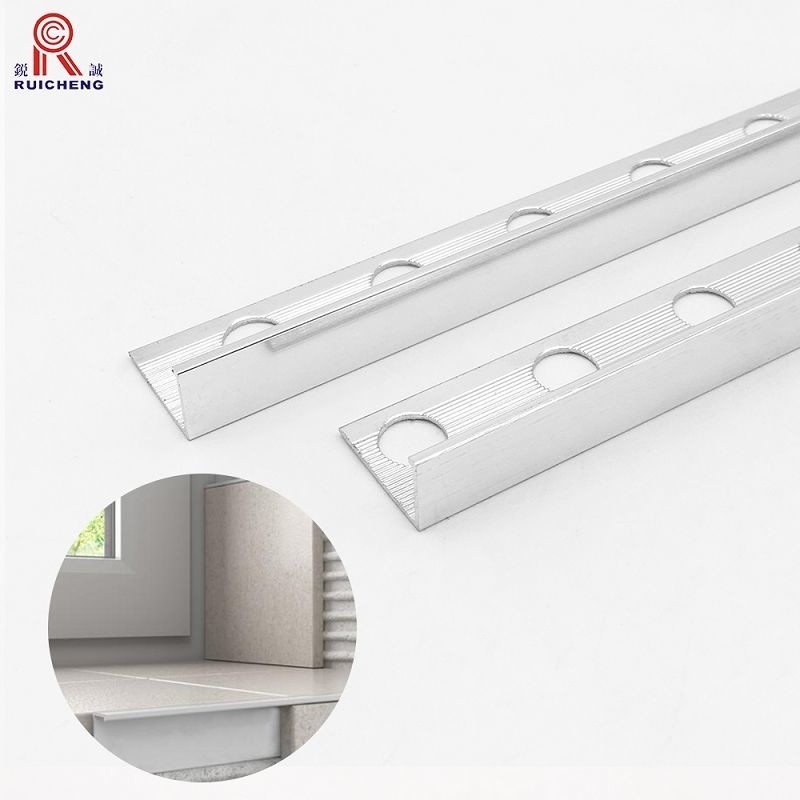

Anodized L Shape Aluminum Tile Trim Alloy Metal Corner Edge Ceramic Protection
The L-Shape trim features a slightly sloped vertical wall or rail that provides a decorative finish while protecting bordering tiles. Designed to create a consistent straight grout linebetween the tile and the finished trim to complete your project.

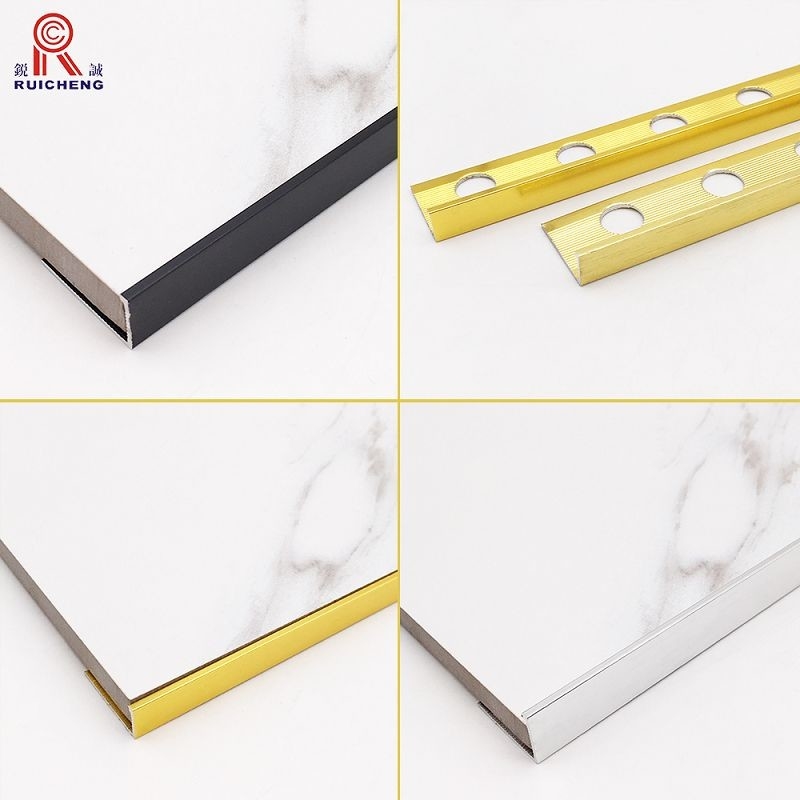

  • Ideal if you want to add protection and a clean finish to your tiling projects. It hides the exposed, raw edges of your tiles, masks irregularities and ensures a symmetrical finish. All while protecting your tiles edges against damage
  • Suitable for use with wall tiles that are up to 10 mm thick. Available in 11 colours for an easy match with the tiles of your choice. Additional options are available for tiles that are up to 8 mm and 12.5 mm thick
  • Easy to install with tile adhesive when tiling
  • Made from aluminium for durability, this tile edge trim is both resistant to water and to rust. Ensuring a high level of protection and a great decorative finish to your tiles for years to come
  • Perfect for any room of the house, especially frequently used bathrooms and kitchens




1.Select profiles according to tile thickness.

2.Trowel tile adhesive over the area that forms the perimeter of the tiled covering.

3.Press the perforated anchoring leg of the profiles into the tile adhesive and align.

4.Trowel additional adhesive over the perforated anchoring leg to ensure full coverage.

5.Solidly embed the tiles so that the tiled surface is flush with the top of the profile (the profile should not be higher than the tiled surface, but up to approximately 1 mm lower).

6.The tile is set to the lateral joint spacer, which ensures a uniform joint of 1.5 mm. With the stainless steel profiles, leave a space of approximately 1.5 mm.

7.Fill the joint completely with grout.




Material High Quality Aviation Aluminum or customized
Color Black, silver, gold, rose gold, champagne, Tan
Length 2500mm/ customized
Width customized
Height 6/8/10/12/15 mm/customized
Thickness customized
Surface Treatment
Brushed, Shiny, Satin, etc.
Application Protection and decoration for the edges and the corners of tiles, furniture, doors.
Service 1. Free sample;
2. OEM available;
3. Custom-made request;
4. New design solution suggestion
Payment Terms T/T 30% deposit in advance, 70% balance before delivery
Delivery 7-25days

Brushed Ceramic Tile Metal Edge Trim , 8.5mm Aluminum Trim Tile  L Shape 0Brushed Ceramic Tile Metal Edge Trim , 8.5mm Aluminum Trim Tile  L Shape 1Brushed Ceramic Tile Metal Edge Trim , 8.5mm Aluminum Trim Tile  L Shape 2
