Place of Origin: | China |
---|---|
Brand Name: | Ruicheng |
Model Number: | Aluminum Listello-001 |
Price: | To Be Negotiated |
Packaging Details: | carton/poly bag/shrink film/pallet/customized |
Delivery Time: | 15-20 work days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 100000 pieces per month |
Material: | Aluminum | Type: | Tile Accessories |
---|---|---|---|
Thickness: | 0.3mm To 3mm Or Customized | Length: | 2.4/2.5/2.7/3m/customization |
Color: | Customized | Surface Treatment: | Anodized,polished,powder Coating |
Height: | 7/8/8.3/8.5mm/Custiomized | Product Name: | Aluminium Tile Trim |
High Light: | Anti Corrosion listello mosaic tile borders,Light Weight listello mosaic tile borders,mosaic tile strip in bathroom |

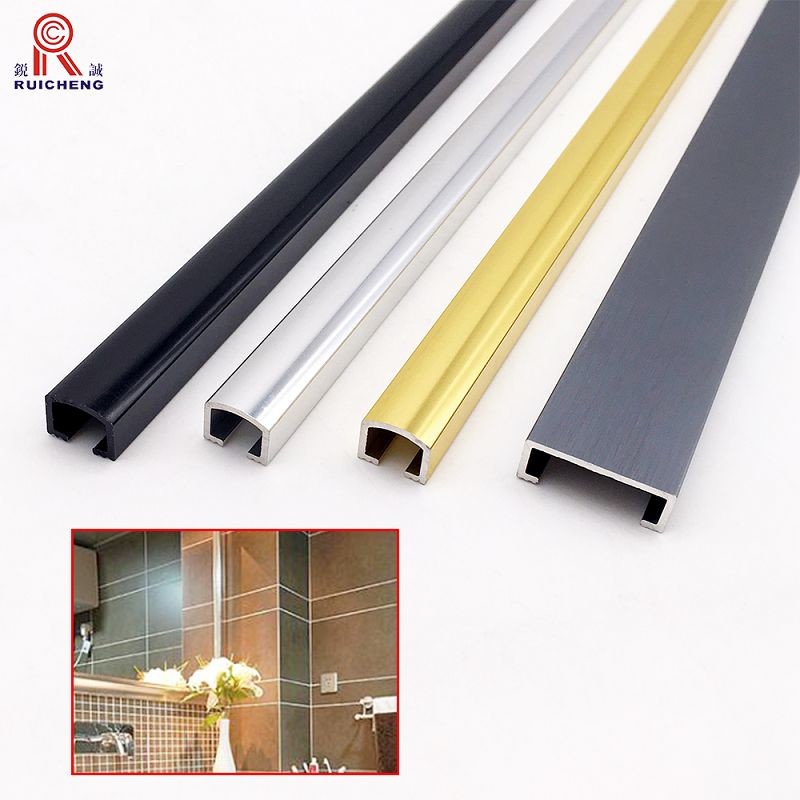

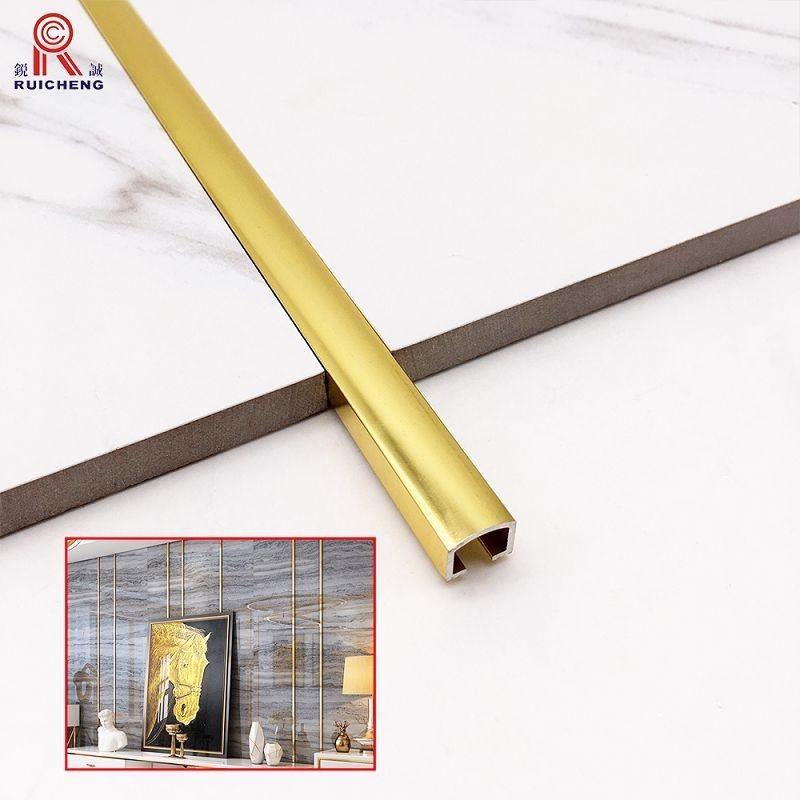

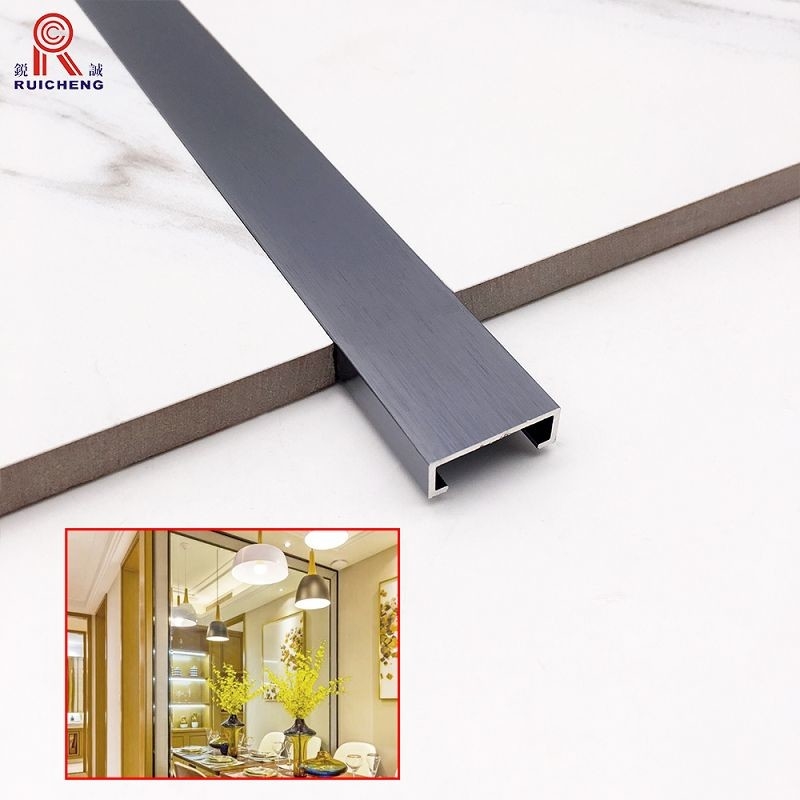

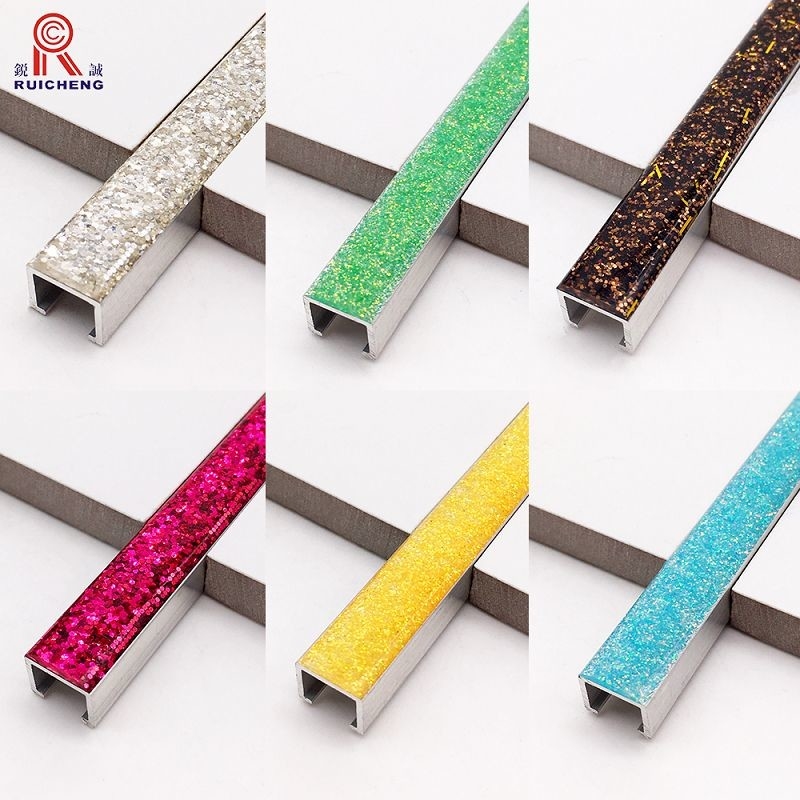

U Shape Listello Tile Trim Aluminium Edge Gold Color Decorative Metal Corner
Application
Generally you need tile trim between 1.5 - 2.0mm deeper than your tiles to allow for the adhesive.
Feature
Those tile edge trim are High Quality and have professional finished look to match shower hoses & taps, shower doors.
Aluminum is a strong and light weight material.
Anodised to provide high corrosion resistance.
Use
1. Choose shape and profile according to tile thickness.
2. Apply thin set mortar according to manufacturer’s directions to the area where profile is to be placed, using the appropriate size U notch trowel.
2a. For edging and outside wall corners using L-Shape or R-Round Bullnose, finish tiling one wall first, then trowel thin set mortar over corner areas of second wall.
2b. For the U-Shape Reducer, fill the hollow space beneath the sloped section of profile with thin set mortar before setting the trim.
3. Press the perforated anchoring leg of the profile into the mortar until mortar fills the circle cutouts. Then align trim with tile edge making sure the tile is flush against lower edge of trim face to ensure a uniform grout joint space between trim and tile.
4. Trowel additional thin set mortar evenly over the perforated anchoring leg completely covering the circle cutouts to ensure full coverage and support of the tile edges. The anchor leg should be partially buried in the sealant.
5. Ensure the tile is flush with top of profile or slightly lower. The profile should not be higher than the tiled surface, but rather up to approx. 1/32” (1 mm) lower.
6. After the tiles and profile have set, fill the grout joint completely with grout.
7. Gently wipe off any excess grout or thin set mortar immediately.
Specification
Material | 6063/6463 Aluminum alloy |
Shape | Round/ Square/ L/ U/ Customized |
Surface treatment | Mill/ Polishing/ Anodized/ Coating/ Brush/ Electrophoresis/ Customized |
Color | Silver/ Gold/ Champagne/ Rose Gold/ Bronze/ Black/ White/ Customized |
Length | 0.9/1.0/2.4/2.5/2.6/2.7/2.8/3.0/ Customized |
Thickness | 0.5-1.5mm/ Customized |
Height | 7mm/8mm/9mm/10mm/11mm/12mm/13mm/14mm/ Customized |
Punching hole | Round/ AILIJIA/ trapezoid/ triangle/ regular triangle/ square/ Customized |
Use for | Ceramic Border/ Wood floor Border/ Stairs Border/ Carpet border/ Transition/ Reducer |
