Gold Listello Tile Trim Extruded Aluminium Material For UV Board

Basic Information
Place of Origin: China
Brand Name: Ruicheng
Model Number: Aluminum Listello-001
Price: To Be Negotiated
Packaging Details: carton/poly bag/shrink film/pallet/customized
Delivery Time: 15-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Detail Information
Material: Aluminum Type: Tile Accessories
Thickness: 0.3mm To 3mm Or Customized Length: 2/2.5/2.7/3m/customization
Color: Customized Surface Treatment: Anodized,polished,powder Coating
Height: 7/8/8.3/8.5mm/Custiomized Product Name: Aluminium Tile Trim
High Light:

Extruded Aluminium Listello Tile Trim


UV Board Listello Tile Trim


mosaic tile edging strip

Product Description

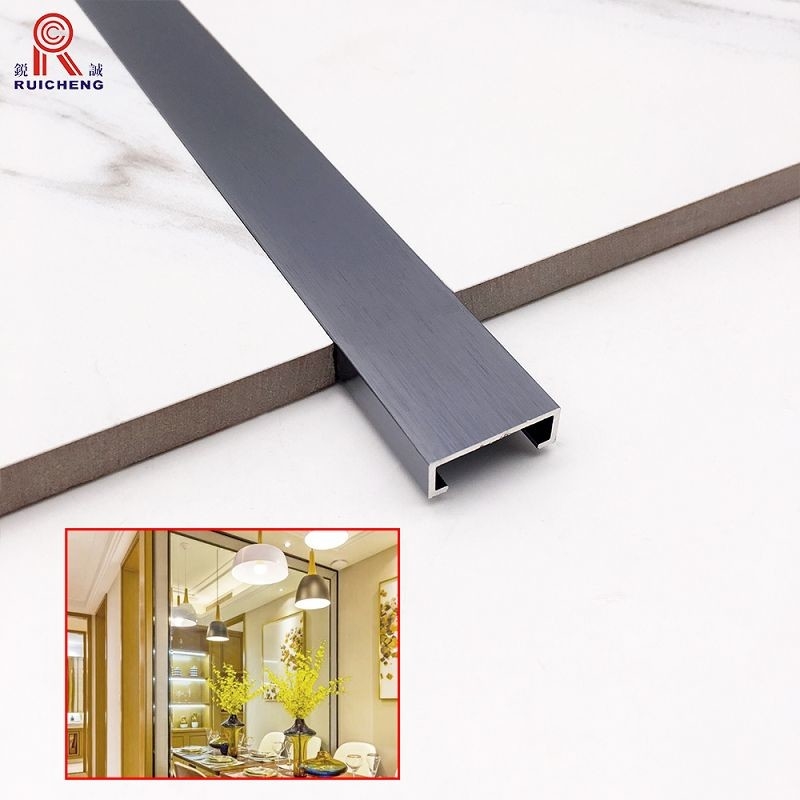

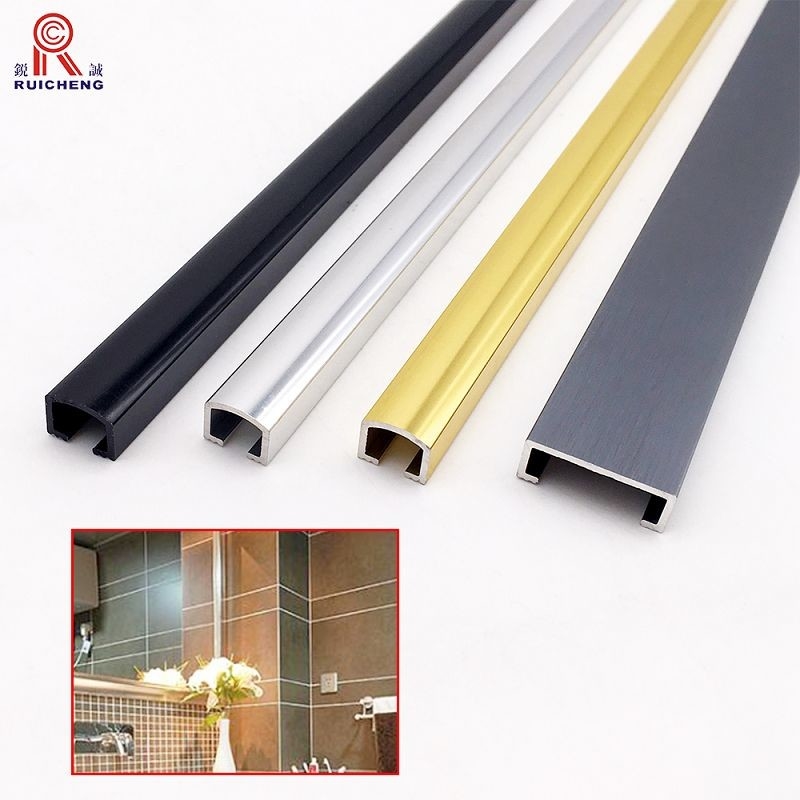

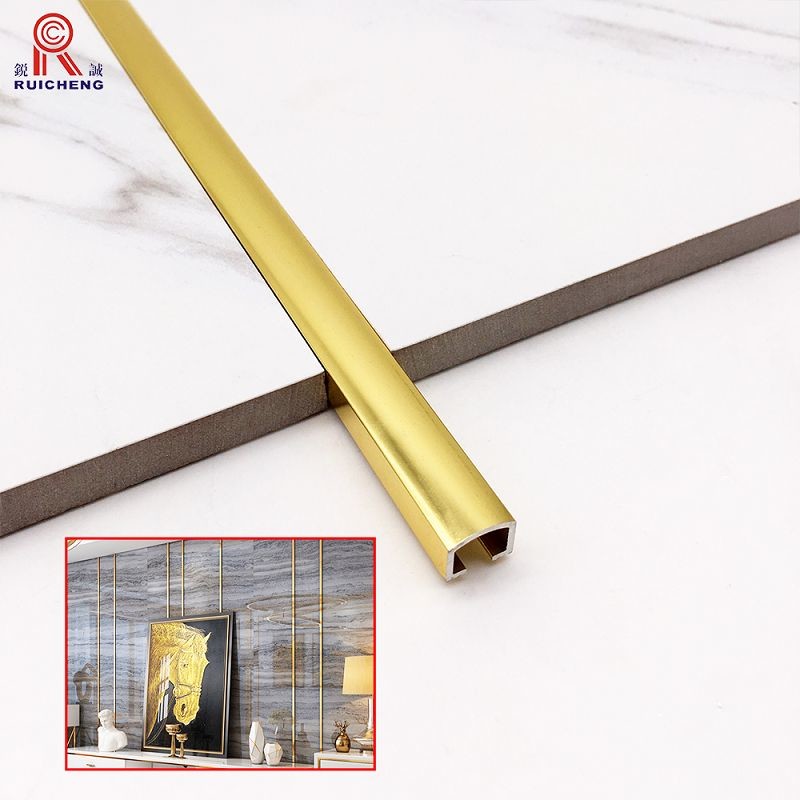

Aluminium U Shape Listello Tile Trim Edge Gold Color Decorative Metal Corner




Black Flat Line Listello.

Length: 2.5m

This is a flat decorative Aluminium profile designed to create a feature in ceramic wall tile installations.

This extruded aluminium profile has a square appearance, making it specifically useful for providing a finished edge for rectified square cut porcelain, marble and stone.



  • Made of satin nickel anodized aluminum

  • Accommodates tiles 3/8-in thick

  • Designed for wall applications

  • Prevents tile edges from chipping

  • Suitable for residential and commercial applications

  • Adds a decorative edge to tiled backsplashes and wall





1. Choose shape and profile according to tile thickness.

2. Apply thin set mortar according to manufacturer’s directions to the area where profile is to be placed, using the appropriate size U notch trowel.

2a. For edging and outside wall corners using L-Shape or R-Round Bullnose, finish tiling one wall first, then trowel thin set mortar over corner areas of second wall.

2b. For the U-Shape Reducer, fill the hollow space beneath the sloped section of profile with thin set mortar before setting the trim.

3. Press the perforated anchoring leg of the profile into the mortar until mortar fills the circle cutouts. Then align trim with tile edge making sure the tile is flush against lower edge of trim face to ensure a uniform grout joint space between trim and tile.

4. Trowel additional thin set mortar evenly over the perforated anchoring leg completely covering the circle cutouts to ensure full coverage and support of the tile edges. The anchor leg should be partially buried in the sealant.

5. Ensure the tile is flush with top of profile or slightly lower. The profile should not be higher than the tiled surface, but rather up to approx. 1/32” (1 mm) lower.

6. After the tiles and profile have set, fill the grout joint completely with grout.

7. Gently wipe off any excess grout or thin set mortar immediately.





Product name Aluminum U shape tile trim
Thickness 0.5-2mm/ Custiomized
Length 2.5M/2.7M/2.8M/3M Custiomized
Surface treatment Matt/Nature/Polished/Brushed

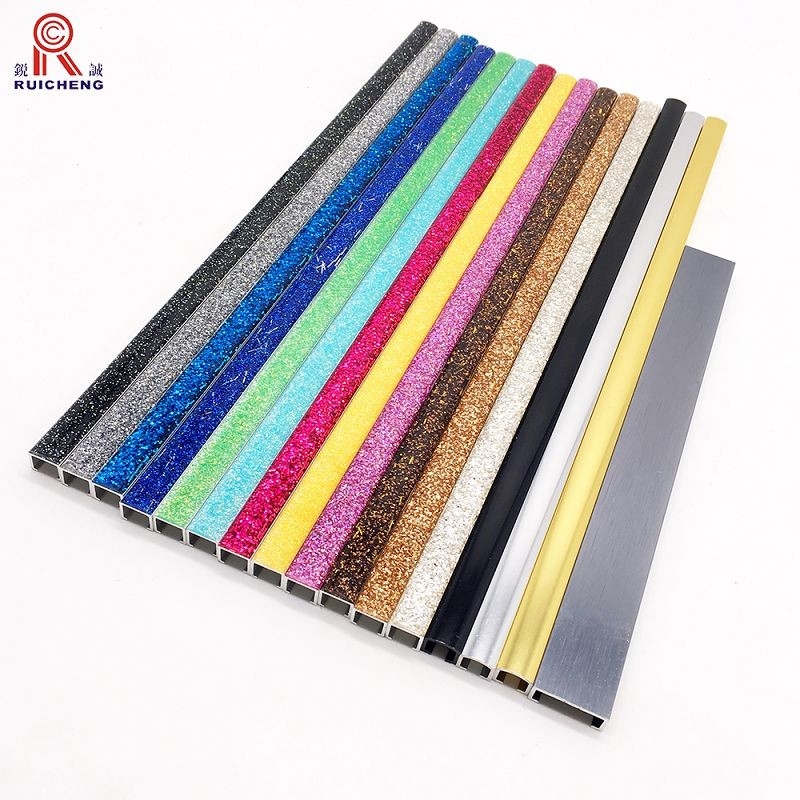

Colour Silver, Gold, Black, Rose gold, Marble etc;
Certificate CE/SGS
Application Protecting & Decorating the edges of tile, marble, UV board, glass, ect.
