U Shape Listello Tile Trim , Gold Mosaic Wall Tile Strips 3m Length

Basic Information
Place of Origin: China
Brand Name: Ruicheng
Model Number: Aluminum Listello-001
Price: To Be Negotiated
Packaging Details: carton/poly bag/shrink film/pallet/customized
Delivery Time: 15-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Detail Information
Material: Aluminum Type: Tile Accessories
Thickness: 0.3mm To 3mm Or Customized Length: 2/2.4/2.5/2.7/3m/customization
Color: Customized Surface Treatment: Anodized,polished,powder Coating
Height: 7/8/8.3/8.5mm/Custiomized Product Name: Aluminium Tile Trim
High Light:

U Shape Listello Tile Trim


3m Listello Tile Trim


mosaic wall tile strips

Product Description

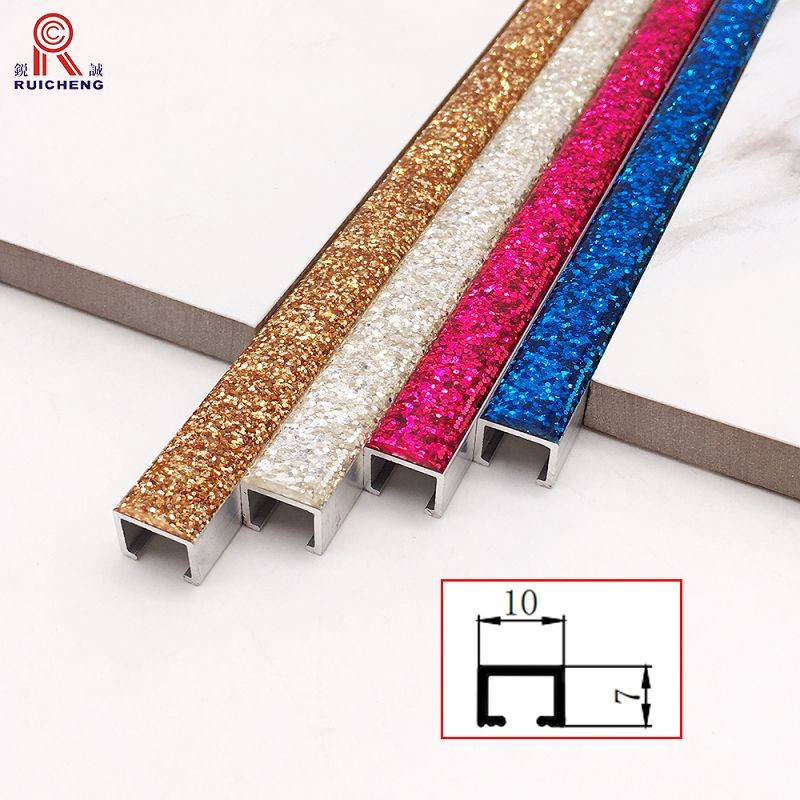

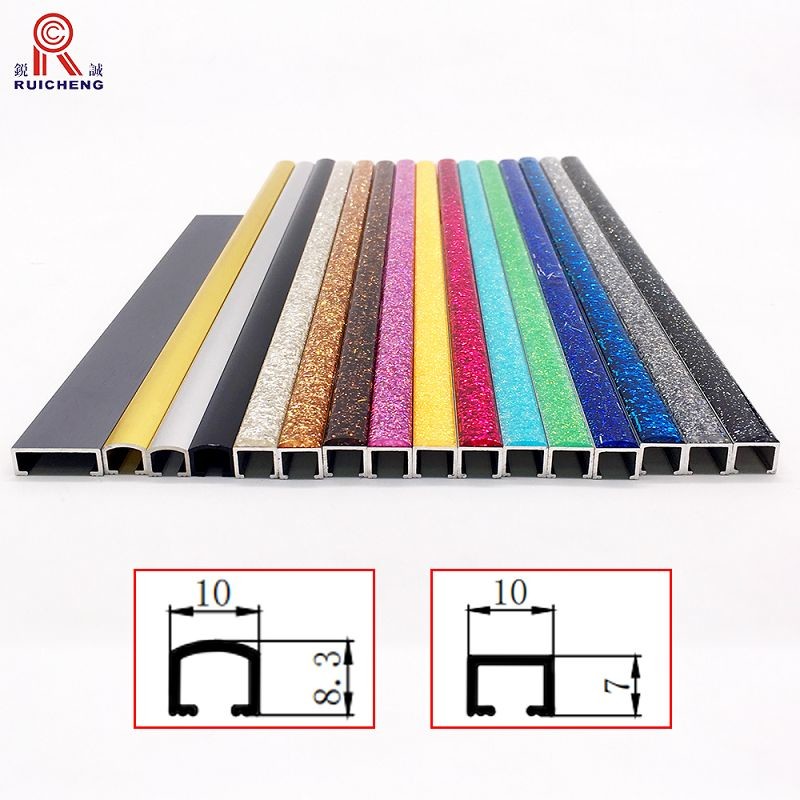

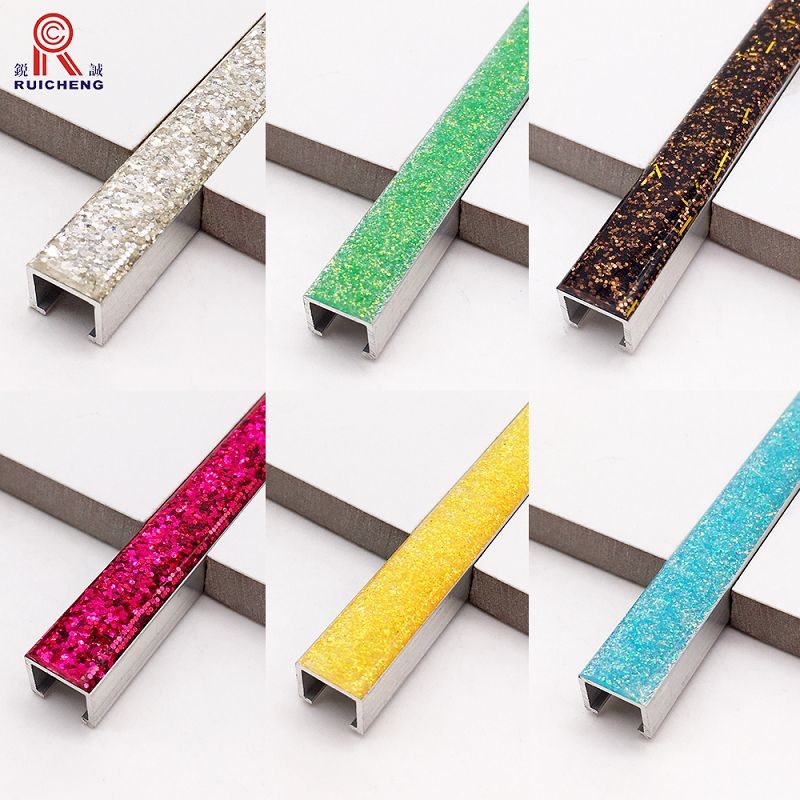

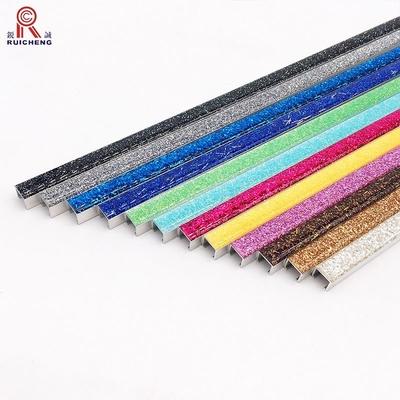

Listello U Shape Tile Trim Decorative Aluminium Edge Gold Color Metal Corner




Aluminium Sparkle Edge Tile Trim, or Box Edge Tile Trim as it is sometimes referred to, is the most versatile of the tile trims. It is used on walls and floors in low use areas such as shower rooms.

When used on the floor, they can be used to great effect to separate areas of tiling, or to make featured shapes within tiled areas. Aluminium Sparkle Edge tile trim can also be used as a listello strip to create a feature in a wall, dividing two separate tile choices, or as a finishing strip to provide a neat finish to a run of tiles that do not go floor to ceiling.



Aluminium is one of the most common materials in the broad catalogue, prized for the multiple benefits it offers. Notable in this range are the aluminium listello tile trims in the range, inspired by contemporary architecture in the modern world. The profiles in this range are available as anodized aluminium in a number of finishes: with multiple colours to choose from, they are the perfect accompaniment for every type of interior. There are also matching corner profiles in the range, available in the same colours, and perfect for protecting external corners.

Also worthy of mention are aluminium listello tile trims which are ideal to give an elegant finish to tiled surfaces: these decorative trims are a versatile option and come in a variety of finishes, with something for every taste and requirement.





1. Choose shape and profile according to tile thickness.

2. Apply thin set mortar according to manufacturer’s directions to the area where profile is to be placed, using the appropriate size U notch trowel.

2a. For edging and outside wall corners using L-Shape or R-Round Bullnose, finish tiling one wall first, then trowel thin set mortar over corner areas of second wall.

2b. For the U-Shape Reducer, fill the hollow space beneath the sloped section of profile with thin set mortar before setting the trim.

3. Press the perforated anchoring leg of the profile into the mortar until mortar fills the circle cutouts. Then align trim with tile edge making sure the tile is flush against lower edge of trim face to ensure a uniform grout joint space between trim and tile.

4. Trowel additional thin set mortar evenly over the perforated anchoring leg completely covering the circle cutouts to ensure full coverage and support of the tile edges. The anchor leg should be partially buried in the sealant.

5. Ensure the tile is flush with top of profile or slightly lower. The profile should not be higher than the tiled surface, but rather up to approx. 1/32” (1 mm) lower.

6. After the tiles and profile have set, fill the grout joint completely with grout.

7. Gently wipe off any excess grout or thin set mortar immediately.





Name aluminum tile trim
Material Aluminum alloy 6063





1.Height:6/8/10/12mm or customized
2.Length:2.5/2.7/3m etc
3.Color:Matt Silver, Bright Silver, Gold, Bronze,Black etc.
4.Thickness: 0.5mm to 2mm/customized
Surface Finish Anodize,polish,brush,powder coat/customized
Punching Hole Round,Square,Triangle,etc/customized
Function To protect and decorate wall edge
Delivery Time 15-20days
Package Protective film / polybag for each pcs, outside with carton or customized

U Shape Listello Tile Trim , Gold Mosaic Wall Tile Strips 3m Length 0U Shape Listello Tile Trim , Gold Mosaic Wall Tile Strips 3m Length 1U Shape Listello Tile Trim , Gold Mosaic Wall Tile Strips 3m Length 2
