8mm Aluminium Tile Trim , ODM L Shaped Aluminum Trim Ceramic Protection

Basic Information
Place of Origin: China
Brand Name: Ruicheng
Model Number: Aluminum L Shape Tile Trim-001
Price: To Be Negotiated
Packaging Details: carton/poly bag/shrink film/pallet/customized
Delivery Time: 15-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Detail Information
Material: Aluminum Tile Accessory Type: Tile Trims
Thickness: 0.3mm To 3mm Length: 2.4m
Color: Customized Surface Treatment: Mill Finish
Height: 7.5mm/Custiomized Punching Hole Shape: Oval/ Letter
High Light:

8mm aluminium tile trim


ODM 8mm aluminium tile trim


Ceramic Protection l shaped aluminum trim

Product Description

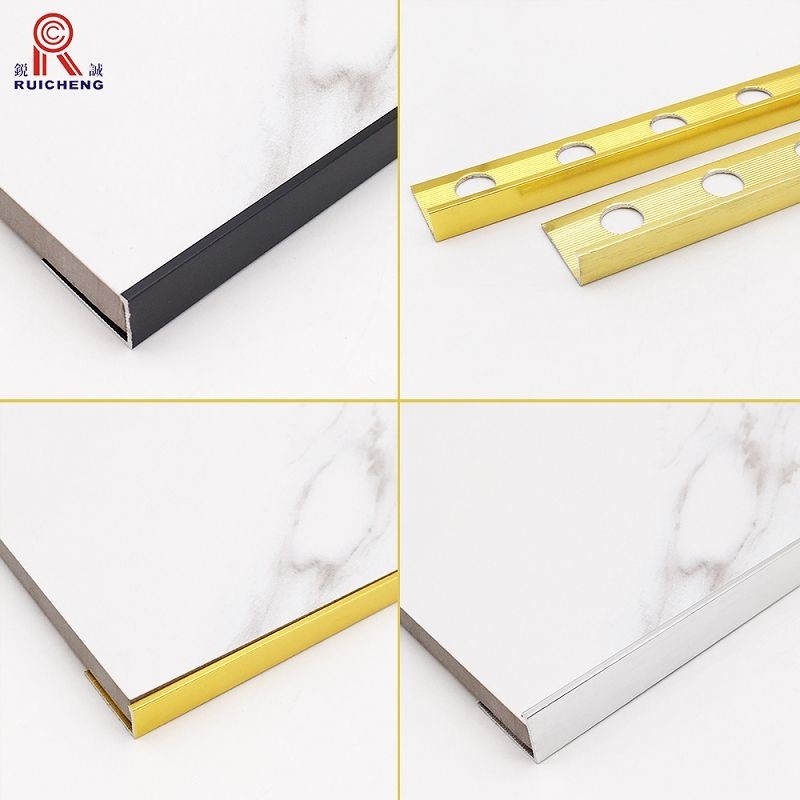

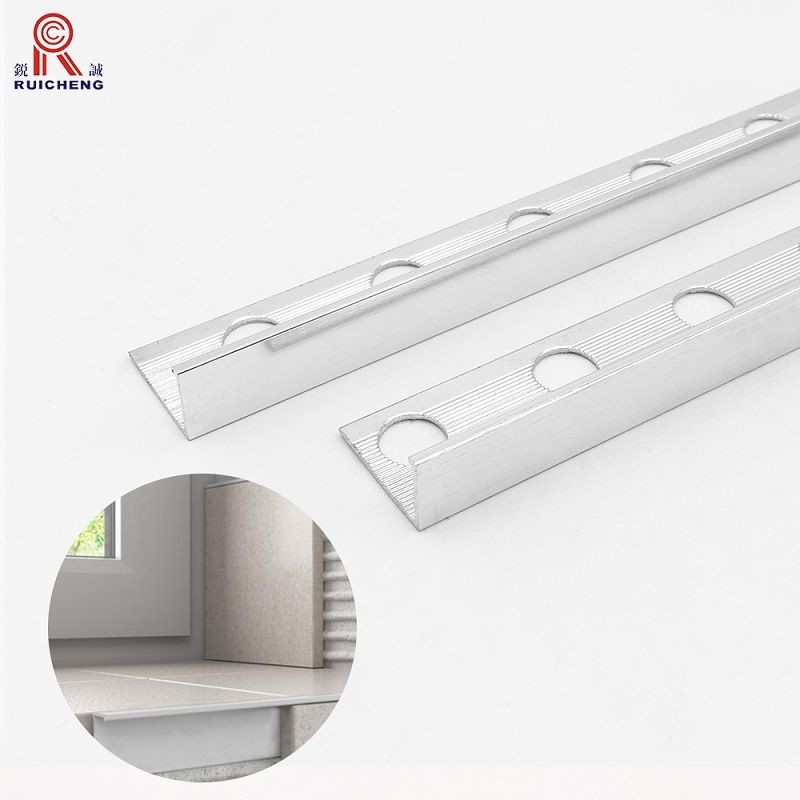

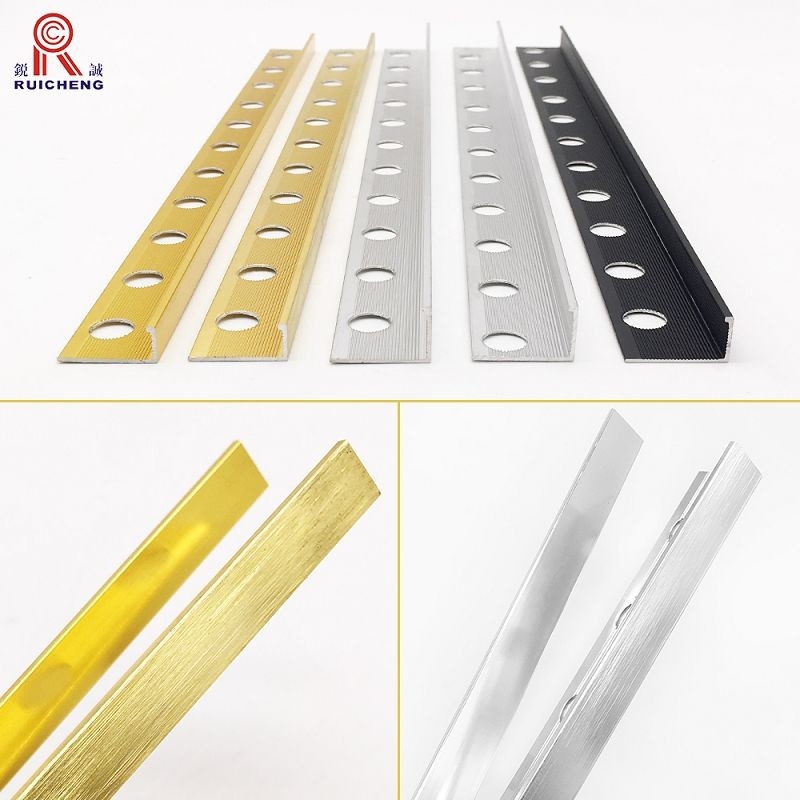

L Shape Alloy Aluminum Tile Trim Metal Corner Edge Ceramic Protection
The L-Shape trim features a slightly sloped vertical wall or rail that provides a decorative finish while protecting bordering tiles. Designed to create a consistent straight grout linebetween the tile and the finished trim to complete your project.


  • Designed for wall applications to prevent chipped tile edges
  • Install while tiling by embedding anchoring leg in thin-set under the tile
  • Matte white textured color-coated aluminum finish
  • Accommodates tiles 3/8-in thick
  • Adds a decorative edge to tiled backsplashes and walls
  • Suitable for residential and commercial applications




1. Choose shape and profile according to tile thickness.

2. finish tiling one wall first, then trowel thin set mortar over corner areas of second wall.

3. Press the perforated anchoring leg of the profile into the mortar until mortar fills the circle cutouts. Then align trim with tile edge making sure the tile is flush against lower edge of trim face to ensure a uniform grout joint space between trim and tile.

4. Trowel additional thin set mortar evenly over the perforated anchoring leg completely covering the circle cutouts to ensure full coverage and support of the tile edges. The anchor leg should be partially buried in the sealant.

5. Ensure the tile is flush with top of profile or slightly lower. The profile should not be higher than the tiled surface, but rather up to approx. 1/32” (1 mm) lower.

6. After the tiles and profile have set, fill the grout joint completely with grout.

7. Gently wipe off any excess grout or thin set mortar immediately.



Name aluminum straight tile trim
Material Aluminum alloy 6063





1.Height:6/8/10/12mm or customized
2.Length:2.5/2.7/3m etc
3.Color:Matt Silver, Bright Silver, Gold, Bronze,Black etc.
4.Thickness: 0.5mm to 2mm/customized
Surface Finish Anodize,polish,brush,powder coat/customized
Punching Hole Round,Square,Triangle,etc/customized
Function To protect and decorate wall edge
Delivery Time 15-20days
Package Protective film / polybag for each pcs, outside with carton or customized
