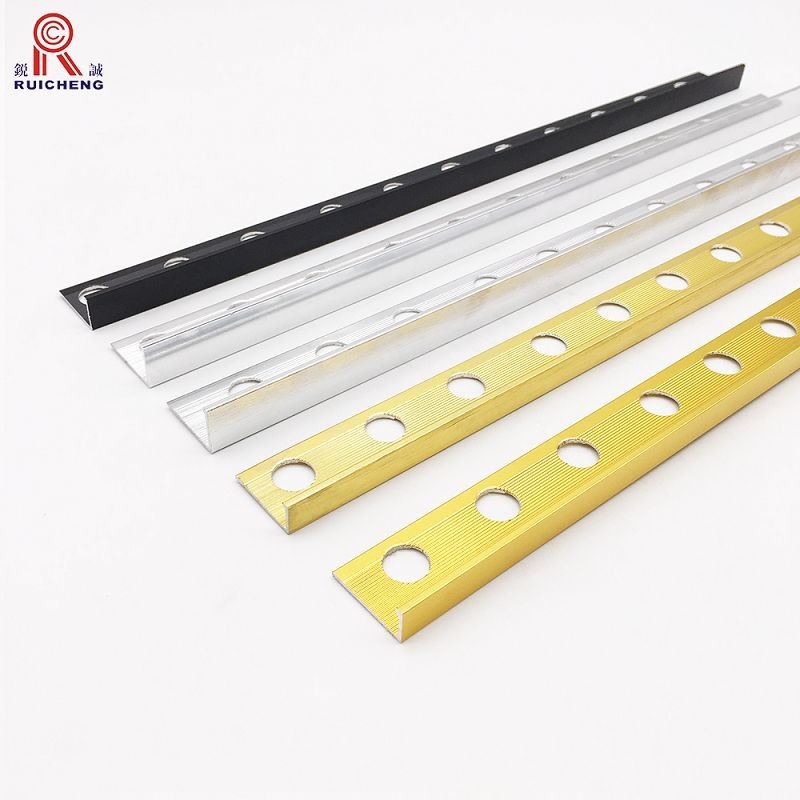

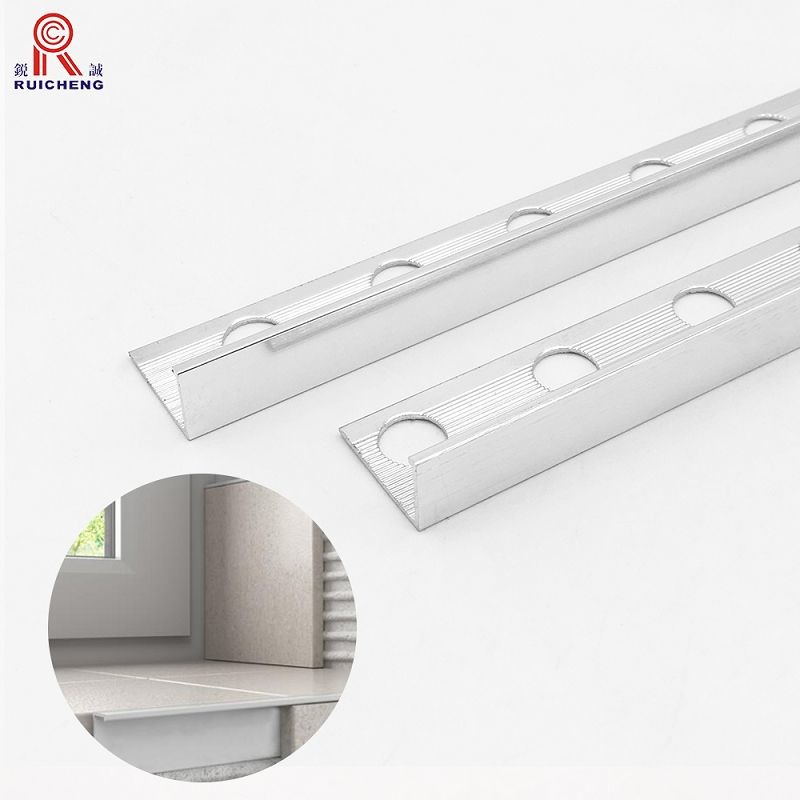

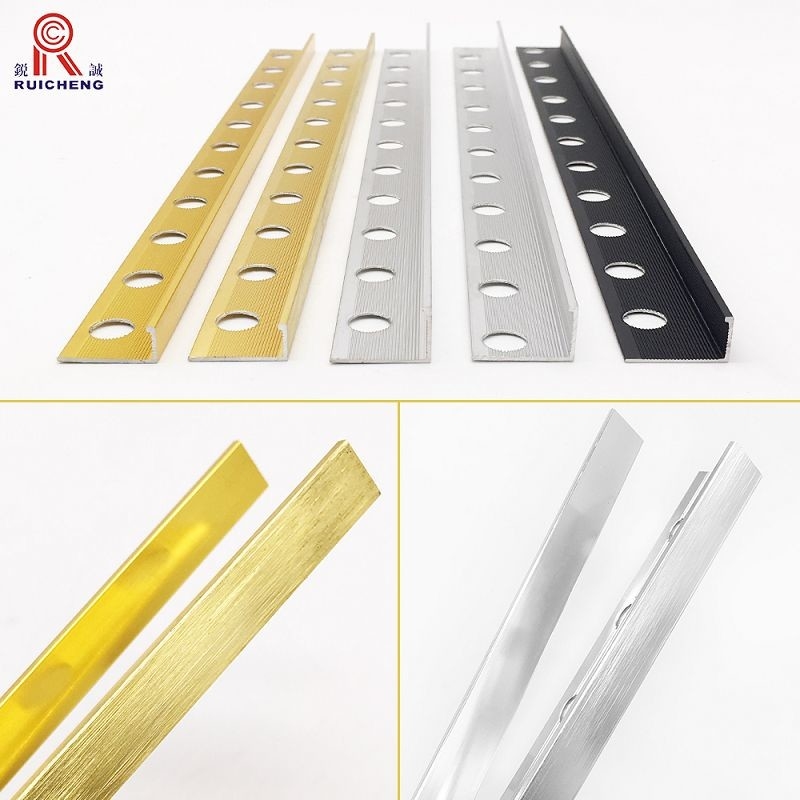

L Shape Aluminum Tile Trim 7.5mm Height 6463 Alu Material Electrophoresis

Basic Information
Place of Origin: China
Brand Name: Ruicheng
Model Number: Aluminum L Shape Tile Trim-001
Price: To Be Negotiated
Packaging Details: carton/poly bag/shrink film/pallet/customized
Delivery Time: 15-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Detail Information
Material: Aluminum Tile Accessory Type: Tile Trims
Thickness: 0.55mm Length: 2.6m
Color: Gold Surface Treatment: Anodized
Height: 7.5mm Punching Hole Shape: Round/ Oval/ Customized
High Light:

7.5mm l shape metal tile trim


Electrophoresis Aluminum Tile Trim


6463 Aluminum Tile Trim

Product Description

L Shape Aluminum Tile Trim Metal Alloy Corner Edge Ceramic Protection



Profiles are designed to protect the edges of ceramic tiles or similar hard finishes fitted in wall and floor installations, this is an L shaped extruded aluminium profile. The suitability of aluminium must be determined if Chemical or mechanical stresses are anticipated.



  • Ideal if you want to add protection and a clean finish to your tiling projects. It hides the exposed, raw edges of your tiles, masks irregularities and ensures a symmetrical finish. All while protecting your tiles edges against damage
  • Suitable for use with wall tiles that are up to 10 mm thick. Available in 11 colours for an easy match with the tiles of your choice. Additional options are available for tiles that are up to 8 mm and 12.5 mm thick
  • Easy to install with tile adhesive when tiling
  • Made from aluminium for durability, this tile edge trim is both resistant to water and to rust. Ensuring a high level of protection and a great decorative finish to your tiles for years to come
  • Perfect for any room of the house, especially frequently used bathrooms and kitchens



1. Select profiles according to tile thickness.

2. Trowel tile adhesive over the area that forms the perimeter of the tiled covering.

3. Press the perforated anchoring leg of the ESA into the tile adhesive and align, mechanical fix if required.

4. Trowel additional adhesive over the perforated anchoring leg to ensure full coverage.

5. Solidly embed the tiles so that the tiled surface is flush with the top of the profile, the profile should not be higher than the tiled surface, but rather up to approximately 1 mm lower.

6. Fill the joint completely with grout.





Material 6063/6463 Aluminum alloy
Shape Round/ Square/ L/ U/ Customized
Surface treatment Mill/ Polishing/ Anodized/ Coating/ Brush/ Electrophoresis/ Customized
Color Silver/ Gold/ Champagne/ Rose Gold/ Bronze/ Black/ White/ Customized
Length 0.9/1.0/2.4/2.5/2.6/2.7/2.8/3.0/ Customized
Thickness 0.5-1.5mm/ Customized
Height 7mm/8mm/9mm/10mm/11mm/12mm/13mm/14mm/ Customized
Punching hole Round/ AILIJIA/ trapezoid/ triangle/ regular triangle/ square/ Customized
Use for Ceramic Border/ Wood floor Border/ Stairs Border/ Carpet border/ Transition/ Reducer

L Shape Aluminum Tile Trim 7.5mm Height 6463 Alu Material Electrophoresis 0L Shape Aluminum Tile Trim 7.5mm Height 6463 Alu Material Electrophoresis 1L Shape Aluminum Tile Trim 7.5mm Height 6463 Alu Material Electrophoresis 2
