Recessed Aluminium LED Strip Light Profile , Aluminium Profile For Strip Light

Basic Information
Place of Origin: China
Brand Name: Ruicheng
Model Number: Aluminium Led Profile-009
Price: To Be Negotiated
Packaging Details: carton/poly bag/shrink film/pallet/customized
Delivery Time: 15-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Detail Information
Material: Aluminum Thickness: 1.2mm Or Customized
Surface Treatment: Anodized,polished,mill Finish Height: 7.5/8/8.3/8.5mm/Custiomized
Product Name: Aluminium Led Profile Temper: T3-T8
Grade: 6000 Series Shape: Square,Round,angle
High Light:

ODM Aluminium LED Strip Light Profile


1.2mm Aluminium LED Strip Light Profile


Recessed aluminium profile for strip light

Product Description

Floor Aluminium Led Profile Lighting Strips Waterproof Decorative Corner Extruded



There are lots of applications for the use of aluminum industry solutions for the LED lighting industry.Aluminum extrusion design is used to enhance and make improvements to LED strip light and other types of LED lighting installations for commercial properties, such as hotels, restaurants, nightclubs, bars, and amusement parks, as well as for residential applications.

Some other examples of aluminum industry solutions for LED lighting include:

  • Lightbar effects for commercial properties
  • recessed lighting for residential properties
  • outdoor living spaces for pools, retaining walls, pathways, etc.
  • sports stadiums, event centers, and other large-scale applications



Aluminum channel or tracks for LED strip light have their own importance in ensuring enhanced lighting protection, dust-proof housing, lifespan and provide a better illumination and even lighting. Our professional LED Aluminum channels for LED Flexible strips that available in sleek, light-weight Aluminum material allows designers, manufactures and builders to create compact, custom and functional lighting fixtures. Ideal aluminum profile for under cabinet, angle lighting and pendent lighting.



Installing LED tape in an aluminium profile is recommended due to the protective features the profile offers. As well as protecting the tape from general wear and tear, aluminium channel also acts as a heat sink which prevents the LED tape from overheating and thus prolonging its lifespan.Aluminium LED strip light extrusions help to prevent contact damage if the LED tape is positioned within easy reach. And though they are not waterproof, extrusions can help prevent moisture.Aluminium channel also helps protect LED tape from the elements in outdoor installations when sealed with a silicone glue thanks to it’s anodized coating.





Type LED Aluminum Extrusion Profile
Material 6063-T5 Aluminum Alloy
Surface Treatment Color Anodized / Painting(white,black,others)
PC transmittance Opal/Milky 70%, transparent 85%
Standard Length 1m,2m,3m(customized length) * W13*H7.74mm
PCB Width 12.2 mm
UL Stability UL94V-2
IP Grade IP44
Installation Surface Mounted/ Recessed
A set contents Aluminum Profile+PC Diffuser+2pcs Endcaps+2pcs Mounting Clips
Application Indoor Lighting
Package Poly bag + Outer carton
Warranty 5 Years

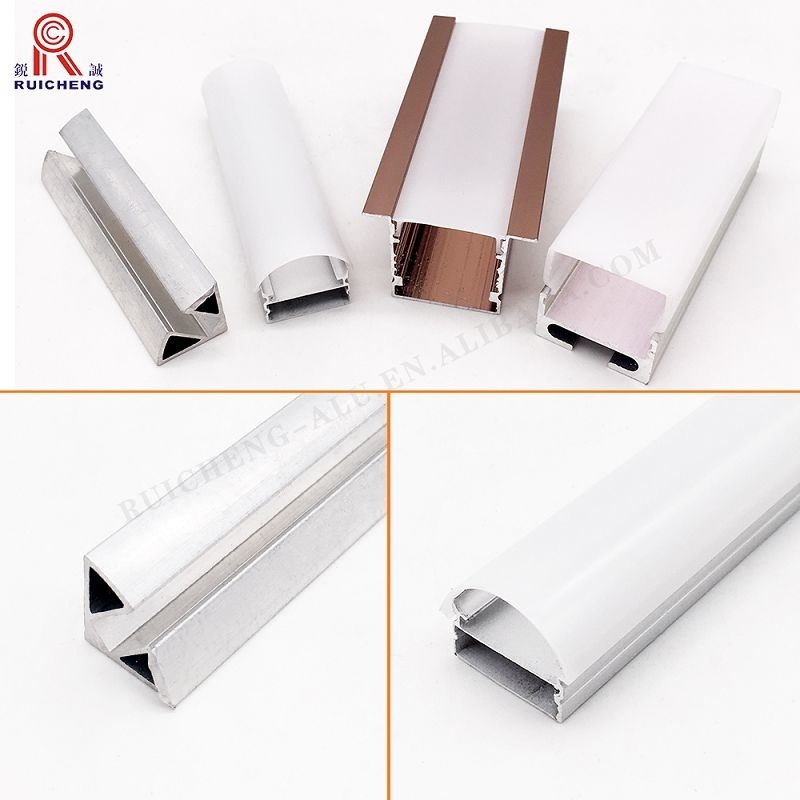

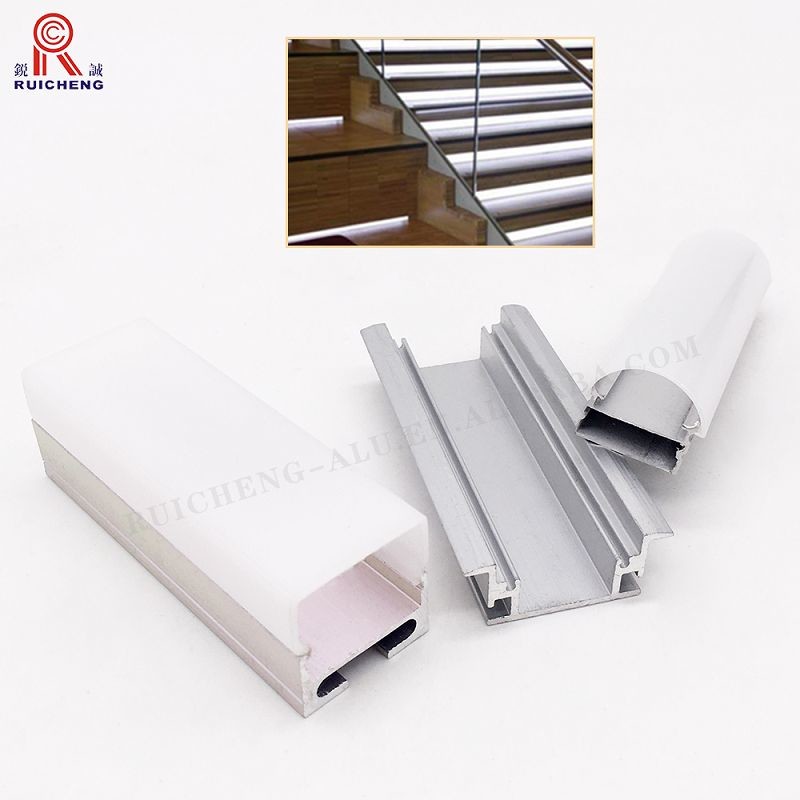

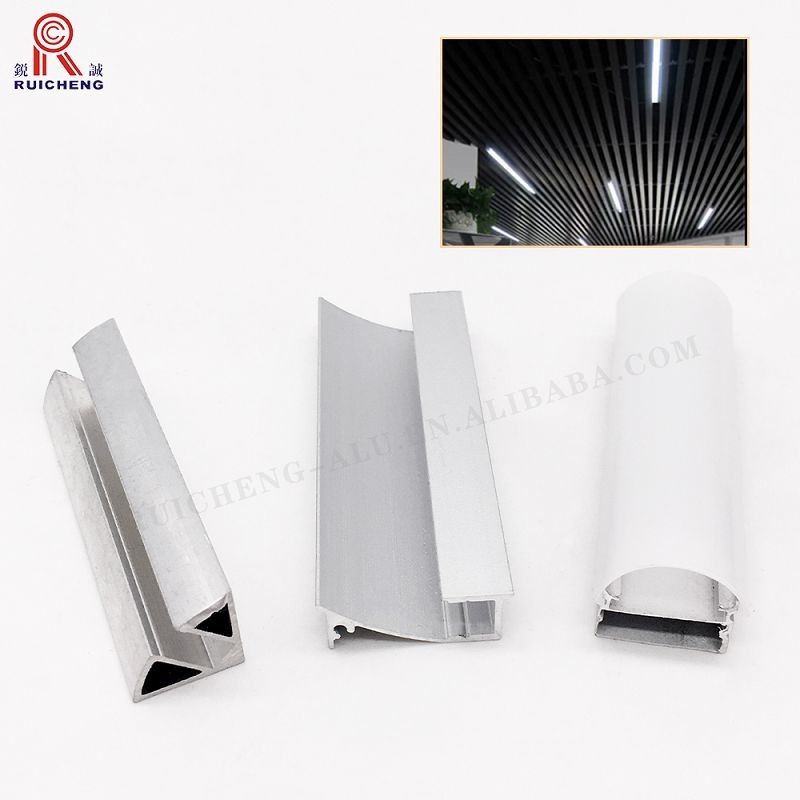

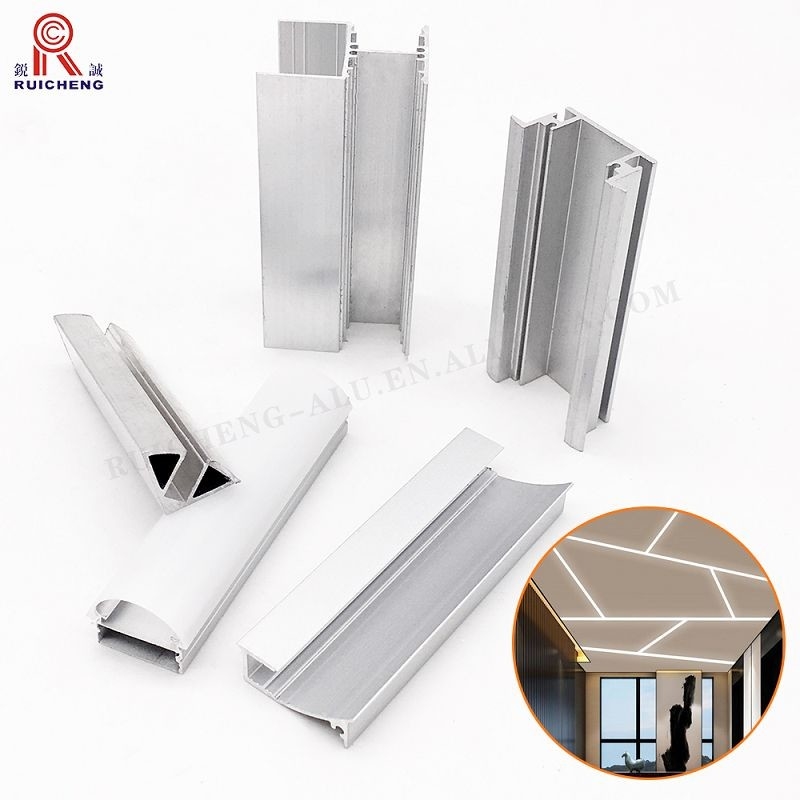

Recessed Aluminium LED Strip Light Profile , Aluminium Profile For Strip Light 0Recessed Aluminium LED Strip Light Profile , Aluminium Profile For Strip Light 1Recessed Aluminium LED Strip Light Profile , Aluminium Profile For Strip Light 2
