| Place of Origin: | China |
|---|---|
| Brand Name: | Ruicheng |
| Model Number: | Aluminum Panel Trim-002 |
| Price: | To Be Negotiated |
| Packaging Details: | carton/poly bag/shrink film/pallet/customized |
| Delivery Time: | 15-20 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 pieces per month |
| Material: | Aluminum | Tile Accessory Type: | Tile Trims |
|---|---|---|---|
| Thickness: | Customized | Length: | Customization |
| Color: | Golden/sliver | Surface Treatment: | Mill Finish |
| Height: | 7.5/8/8.5mm/Custiomized | Product Name: | Aluminium Panel Trim |
| High Light: | 2400mm aluminium wall panel trims,Anodized aluminium wall panel trims,ODM decorative aluminum corner trim |
||

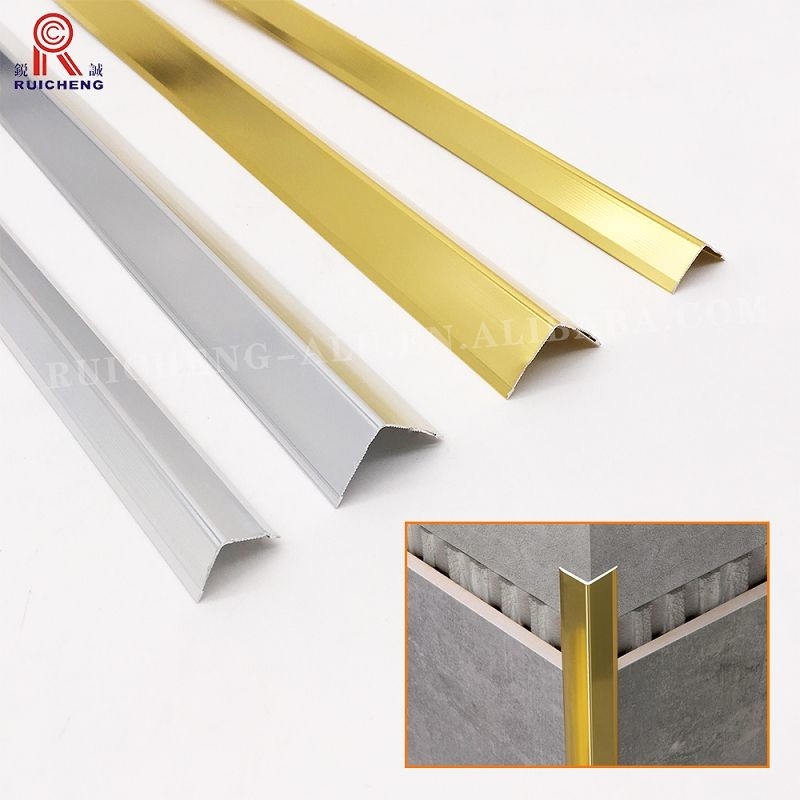

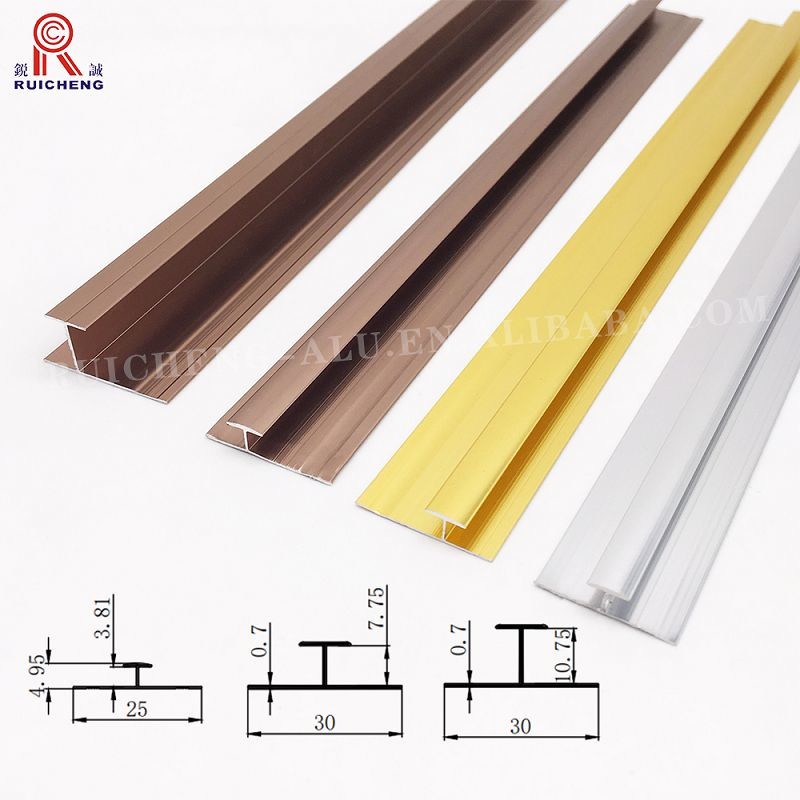

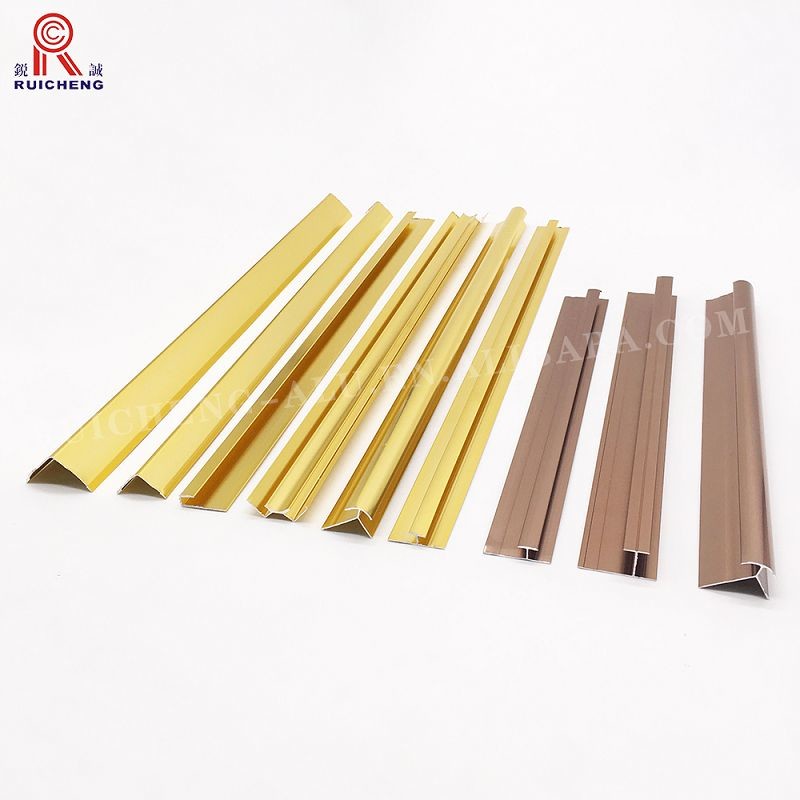

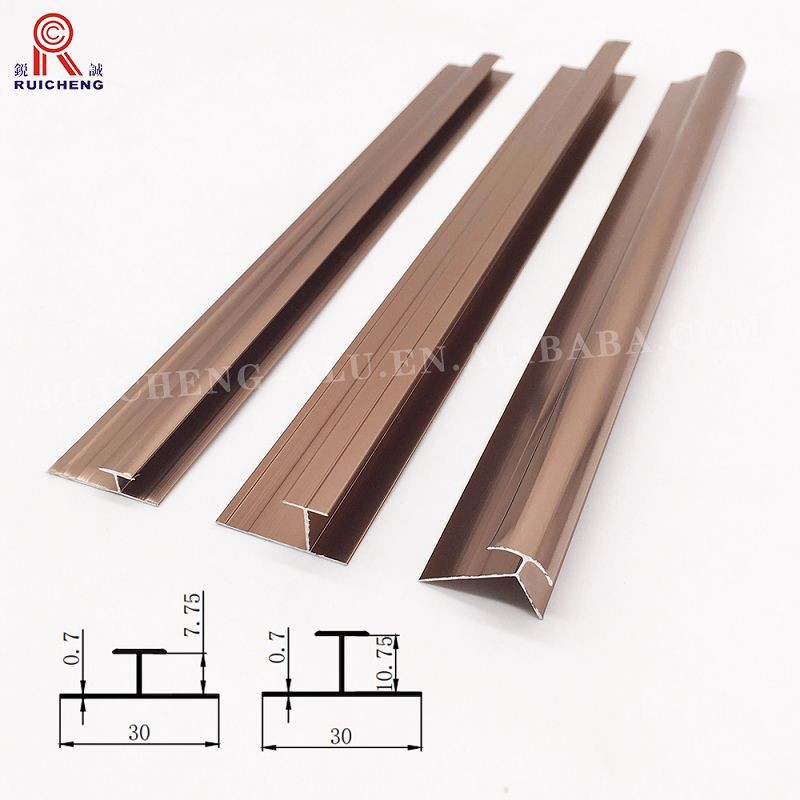

Aluminium Panel Trim External Corner UV Wall Decoration Board Protection Tile Corner
Application
A. Select one of the following finish options
1. Anodized Finish:
a. COLOUR - Satin Clear 10 / ALUMINUM ASSOCIATION SPECIFICATION - AA-M12C22A31 /
ANODIZING DESCRIPTION: Architectural Class II - Minimum 10μ (0.4 mil) coating
b. COLOUR – Black 18 / ALUMINUM ASSOCIATION SPECIFICATION - AA-M12C22A44 /
ANODIZING DESCRIPTION: Architectural Class II - Minimum 18μ (0.7 mil) coating
B. Primed Finish:
1. Primer – Oven baked, PPG Duracon 100 Beige Primer.
2. For site paint application with high-quality acrylic latex paint or factory pre-finished with high-quality
acrylic latex paint or powder coat
C. ColorMatch® Pre-Finished Custom Color:
1. Factory applied high-quality acrylic latex paint
2. Air dried and cured
Feature
Use
Wall Board Profiles must be installed by suitably qualified contractors with the required knowledge and expertise. Current standard construction methods must be used.The contractor, has the responsibility and duty to ensure proper safety during and after completion of the installation, so that the Wall Board Profiles remain safely secured to the attached surfaces.
Specification
| Product | Aluminium Panel Trim |
| Material | Aluminum Alloy |
| Specification | 1. Length: 2.5m/2.7m/3m/Customized |
| 2. Thickness: 1mm~3mm/Customized | |
| 3. Height: 9mm/12mm/18mm/Customized | |
| 4. Color: Gloss Gold/Porcelain White/Black/Gloss Silver/Gloss Gray/Rose Gold | |
| 5. Types: According to Your Market or Recommend | |
| Surface | Polishing, Anodizing Oxidation, Powder Coating, Electrophoresis |
| Application | Protect & Decorate the Tile Edges, MDF Wall, Marble, UV Board, Glass, Ect. |
| Certification | ISO9001, ISO14001, OHSAS18001, Qualicoat, CQC Energy-Saving Products |
