Aluminum Metal Corner Trim For Ceramic Tile Powder Coating 10.5mm Height

Basic Information
Place of Origin: China
Brand Name: Ruicheng
Model Number: Aluminum Square Edge Tile Trim-001
Price: To Be Negotiated
Packaging Details: carton/poly bag/shrink film/pallet/customized
Delivery Time: 15-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Detail Information
Material: Aluminum Tile Accessory Type: Tile Trims
Thickness: 1.5mm Or Customized Length: 1.5/2.5/3m
Color: Black/customization Surface Treatment: Powder Coating
Height: 10.5mm/Custiomized Punching Hole Shape: Oval/ Customized
High Light:

Powder Coating tile edge trim aluminum


10.5mm metal corner trim for ceramic tile


metal corner trim for ceramic tile

Product Description

Protection Ceramic Aluminium Tile Trim Box Edge Shape Decorative Gold


These aluminium tile trim Square profiles are ideal for finishing in bathrooms and kitchens and many other applications in your home, office or commercial. Tile edge trim it is a very good solution for tiles edge protection (corner guards). Square edge trim can be used, especially when the ending of tile surface connects with other types of surface, e.g. PVC carpeting, rug, etc.

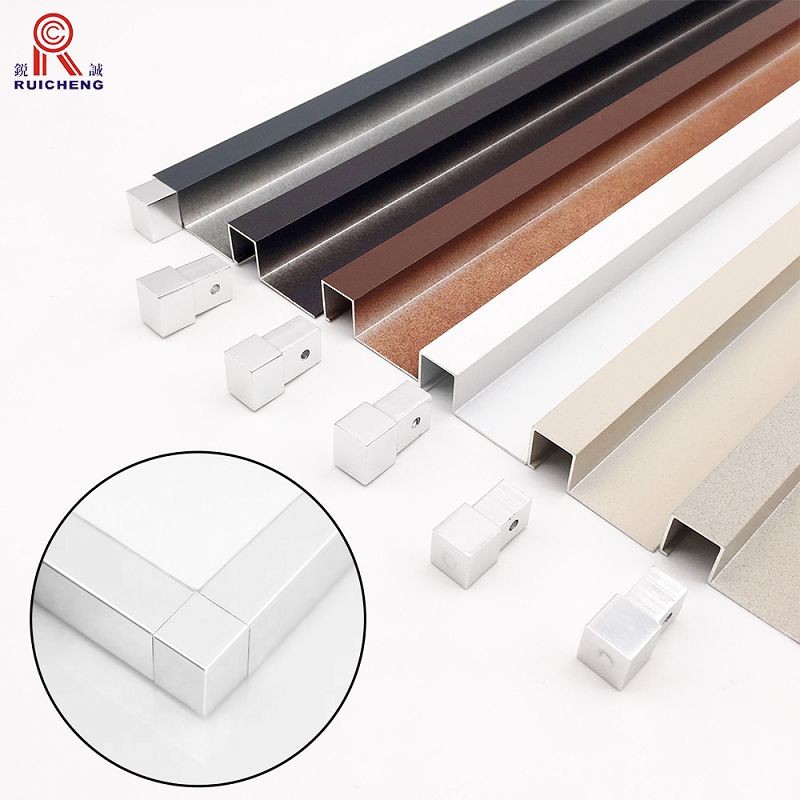

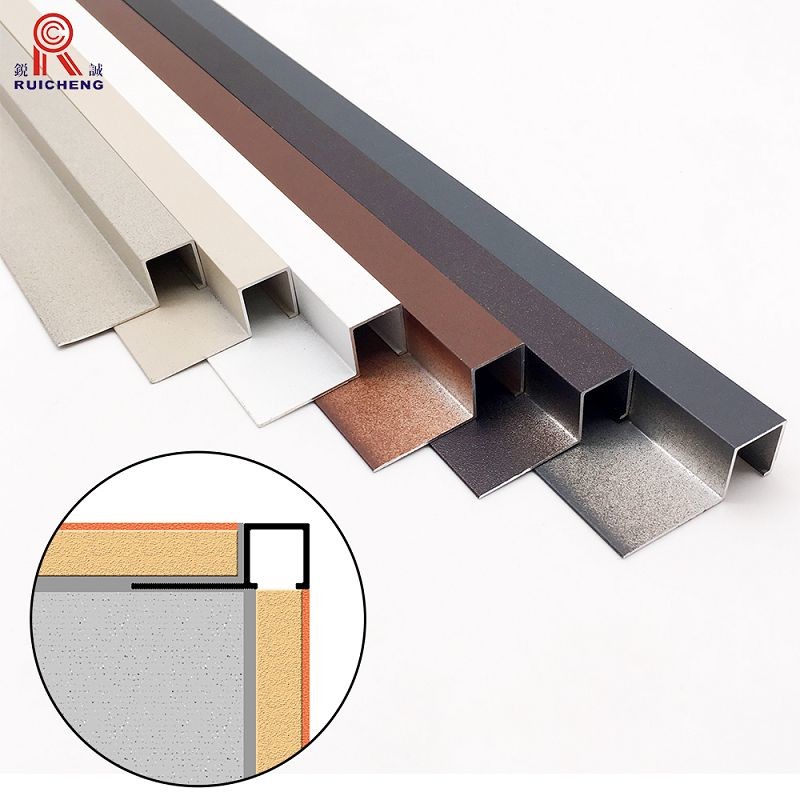

An extruded aluminium profile with a box edge designed to protect the edges of ceramic tiles or similar hard finishes fitted in wall or floor installations. Available in a wide range of heights and finishes with corresponding Internal and External Aluminium corners avoiding the unsightly and exposed 45º cuts. These trims measure 2.5m in Length.



1. Choose shape and profile according to tile thickness.

2. Apply thin set mortar according to manufacturer’s directions to the area where profile is to be placed, using the appropriate size U notch trowel.

2a. For edging and outside wall corners using Square edge or R-Round Bullnose, finish tiling one wall first, then trowel thin set mortar over corner areas of second wall.

2b. For the U-Shape Reducer, fill the hollow space beneath the sloped section of profile with thin set mortar before setting the trim.

3. Press the perforated anchoring leg of the profile into the mortar until mortar fills the circle cutouts. Then align trim with tile edge making sure the tile is flush against lower edge of trim face to ensure a uniform grout joint space between trim and tile.

4. Trowel additional thin set mortar evenly over the perforated anchoring leg completely covering the circle cutouts to ensure full coverage and support of the tile edges. The anchor leg should be partially buried in the sealant.

5. Ensure the tile is flush with top of profile or slightly lower. The profile should not be higher than the tiled surface, but rather up to approx. 1/32” (1 mm) lower.

6. After the tiles and profile have set, fill the grout joint completely with grout.

7. Gently wipe off any excess grout or thin set mortar immediately.




Name Aluminum Tile Trim
Material Aluminum Alloy



1. Length: 2.44/ 2.5/ 2.7/ 3m/ Customized
2. Thickness: 0.4mm-2mm/ Customized
3. Height: 8/ 10/ 12 mm/ Customized
4. Colour: Silver/ Gold/ Black/ Champagne/ Customized
5. Type: According to Your Market or Recommend
Punching Hole Shape Square/ Round/ Triangle/ Letters/ Diamond/ Customized
Surface Treatment Polishing, Anodizing oxidation, Power coating, Electrophoresis
Application Protecting & Decorating the edges of tile, marble, UV board, glass, ect.
Certification ISO9001,SGS ,TUV

Good Wear and Corrosion Resistance.

Smoothness, Attractive and Elegant Looking to Meet Your Preferences

Simple and Easy for Installation.

Aluminum Metal Corner Trim For Ceramic Tile Powder Coating 10.5mm Height 0Aluminum Metal Corner Trim For Ceramic Tile Powder Coating 10.5mm Height 1Aluminum Metal Corner Trim For Ceramic Tile Powder Coating 10.5mm Height 2
