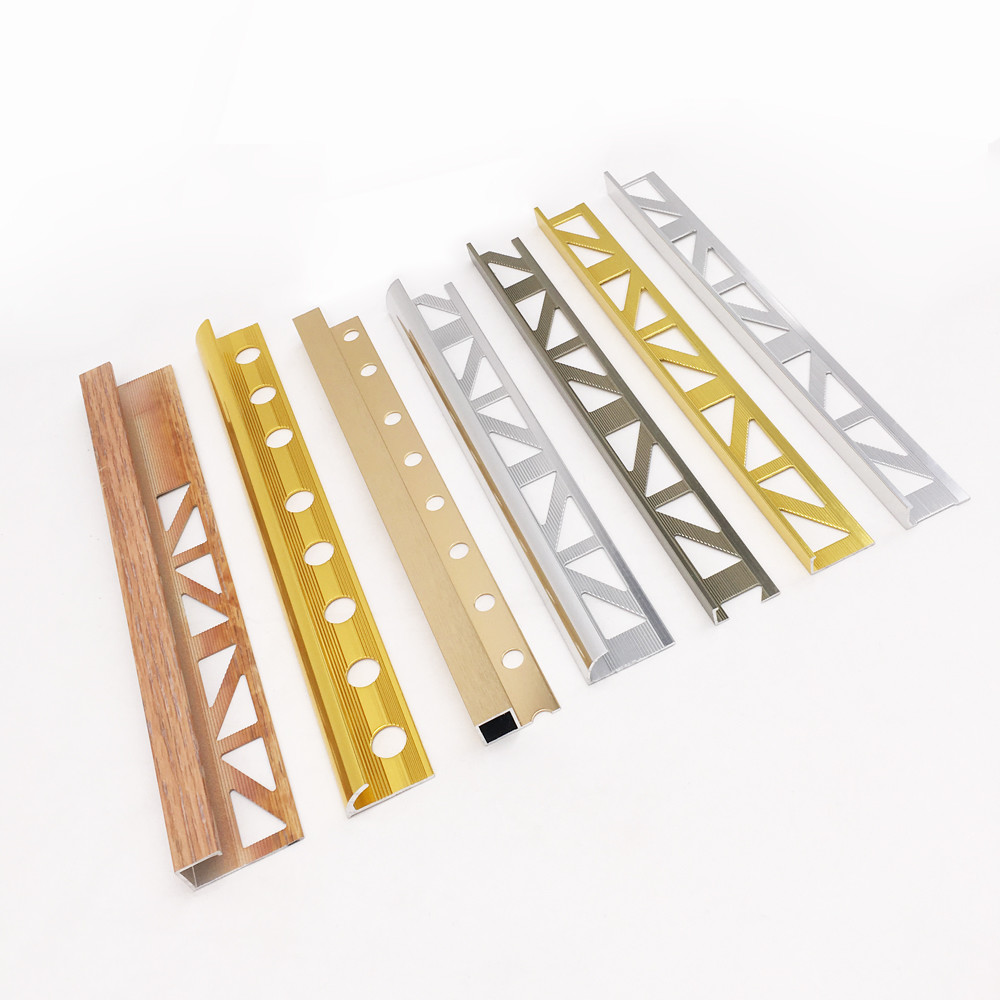

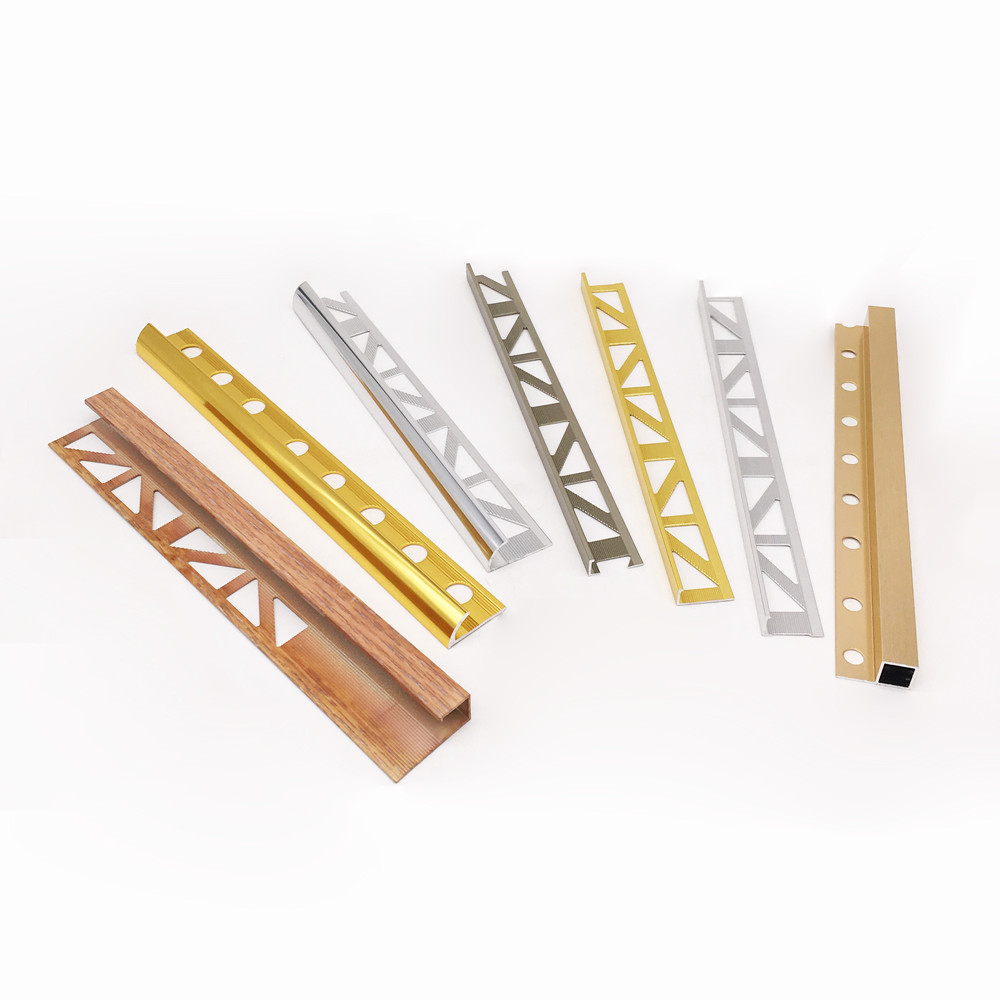

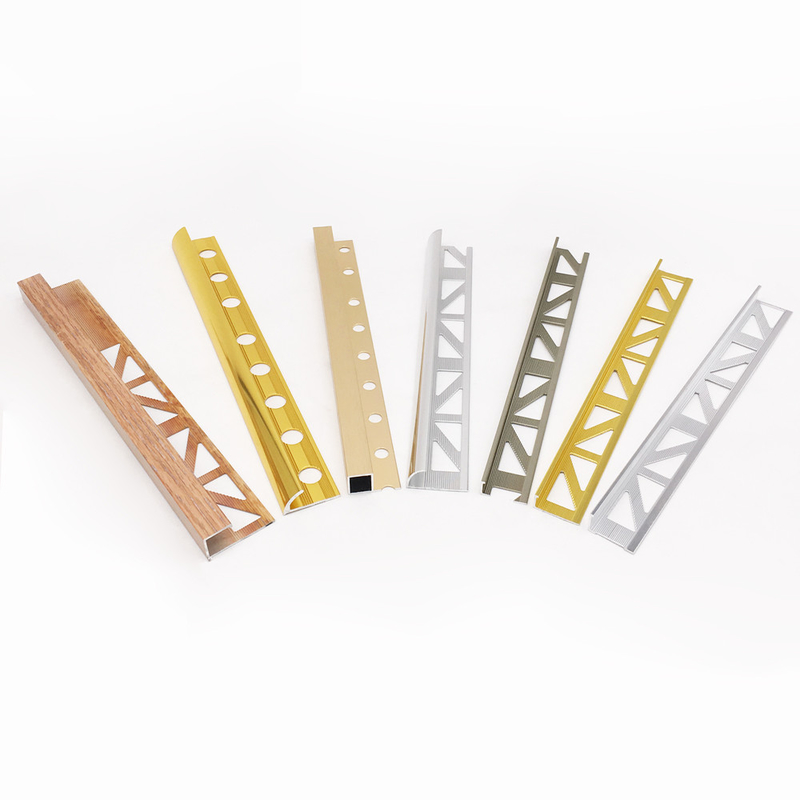

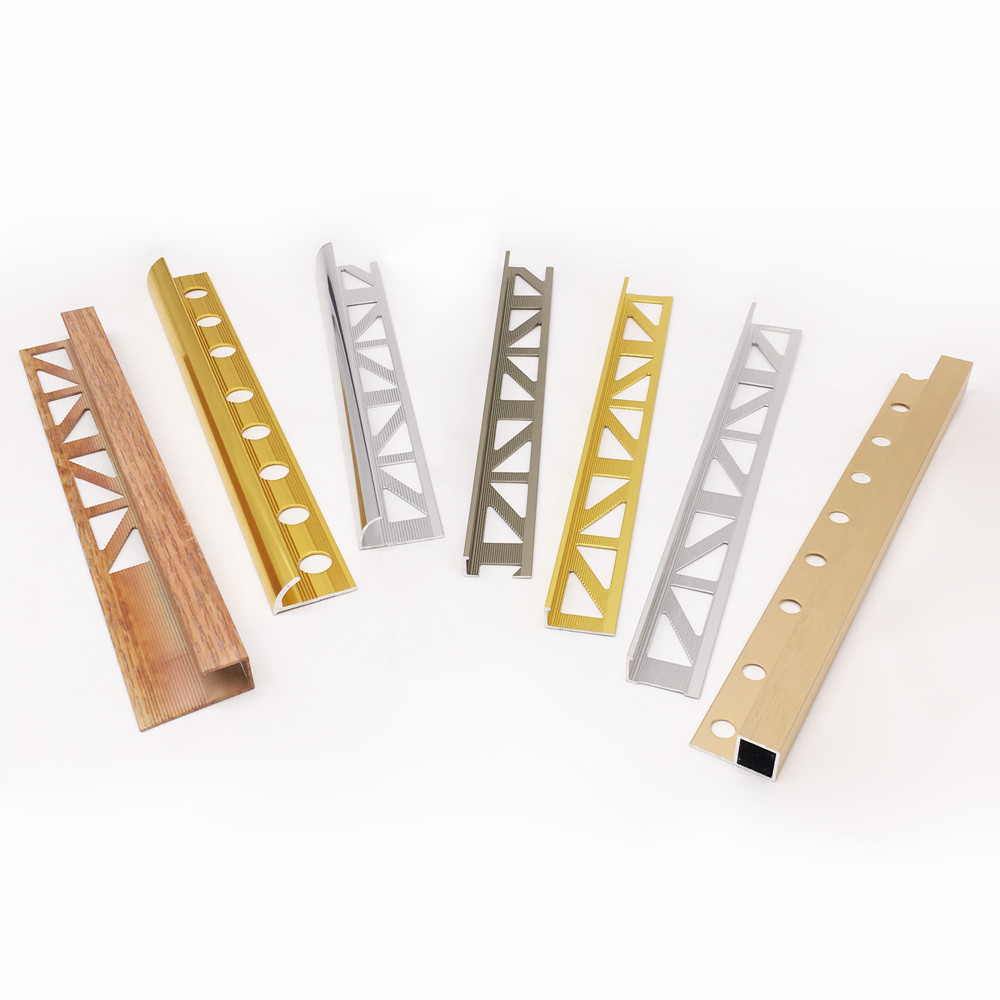

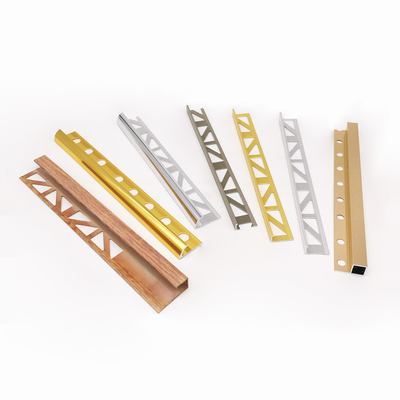

L Shape Aluminum Tile Trim 12.5mm Height 6463 Alu Material Electrophoresis

Ready To Ship L Shape Aluminum Tile Trim 12.5mm Height 6463 Alu Material Electrophoresis

Application

The L-Shape trim features a slightly sloped vertical wall or rail that provides a decorative finish while protecting bordering tiles. Designed to create a consistent straight grout linebetween the tile and the finished trim to complete your project.


Feature

• Designed for wall applications to prevent chipped tile edges
• Install while tiling by embedding anchoring leg in thin-set under the tile
• Matte white textured color-coated aluminum finish
• Accommodates tiles 3/8-in thick
• Adds a decorative edge to tiled backsplashes and walls
• Suitable for residential and commercial applications

Use


1. Select profiles according to tile thickness.

2. Trowel tile adhesive over the area that forms the perimeter of the tiled covering.

3. Press the perforated anchoring leg of the ESA into the tile adhesive and align, mechanical fix if required.

4. Trowel additional adhesive over the perforated anchoring leg to ensure full coverage.

5. Solidly embed the tiles so that the tiled surface is flush with the top of the profile, the profile should not be higher than the tiled surface, but rather up to approximately 1 mm lower.

6. Fill the joint completely with grout.
