ASTM Aluminium Wall Trim , 1mm Decorative Aluminum Edging 6663t5 Alloy

Basic Information
Place of Origin: China
Brand Name: Ruicheng
Model Number: Aluminum Panel Trim-001
Price: To Be Negotiated
Packaging Details: carton/poly bag/shrink film/pallet/customized
Delivery Time: 15-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 pieces per month
Detail Information
Material: Aluminum Tile Accessory Type: Tile Trims
Thickness: 1mm Length: 2.7m
Color: Golden Surface Treatment: Mill Finish
Height: 8mm Product Name: Aluminium Panel Trim
High Light:

6663t5 aluminium wall trim


ASTM decorative aluminum edging


1mm decorative aluminum edging

Product Description

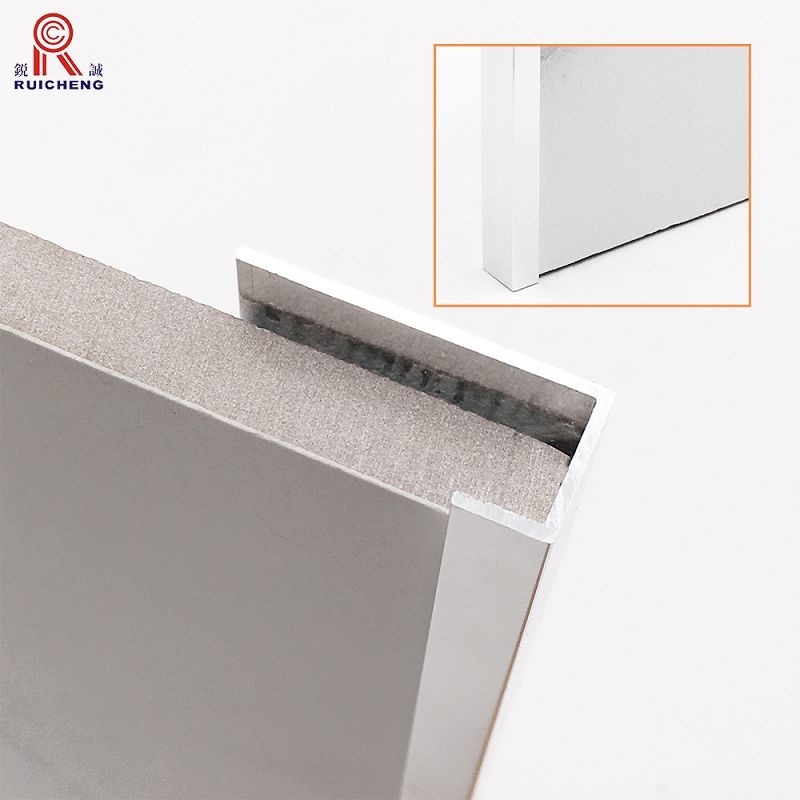

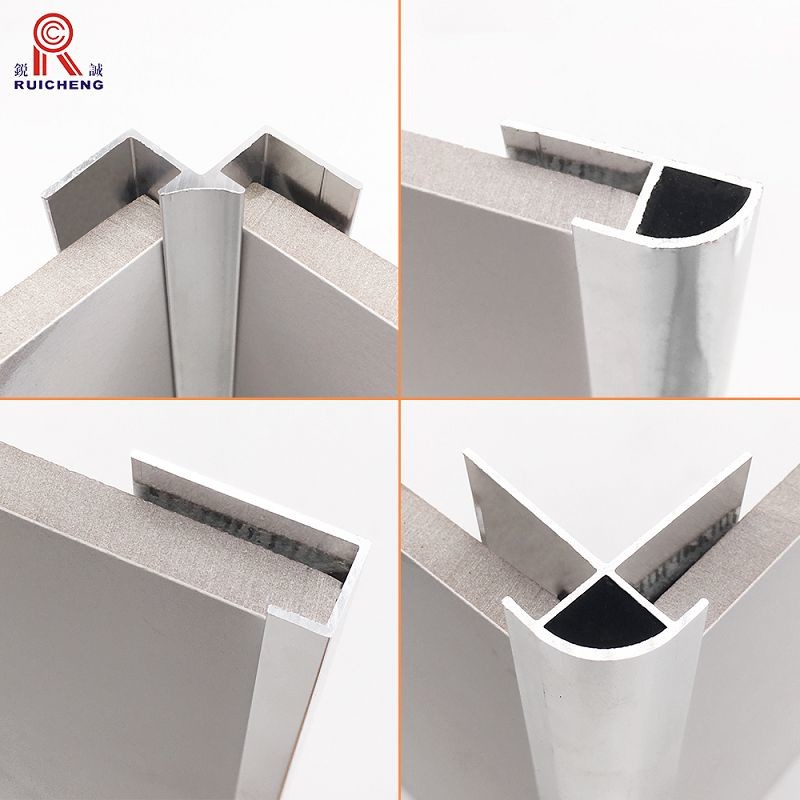

UV Board Aluminium Panel Trim Wall Protection Decoration Tile Corner



A. Extruded Aluminum Shapes: ASTM B 221, 6063-T6 .050” +/-.005 “

B. Mechanical Fasteners: Aluminum, stainless steel or other non-corrosive Material: compatible with aluminum trim.

C. All profiles are 10 foot long unless otherwise indicated



• Stock lengths are 4 metres long.

• Dimensions on drawings are shown in mm.

General: BS & European Standards and Specifications

Aluminium & Aluminium Alloy Extrusions: BS EN 755/515/573

BS EN 755: Extruded bar, rod, tube and profiles. Conditions for delivery, properties, and tolerances.

BS EN 515: Wrought products, temper designations.

BS EN 573: Chemical composition, form of wrought products

Anodising: BS EN ISO 7599

Anodising of aluminium and its alloys. General specifications for anodic oxidation coatings on aluminium.



Wall Board Profiles must be installed by suitably qualified contractors with the required knowledge and expertise. Current standard construction methods must be used.The contractor, has the responsibility and duty to ensure proper safety during and after completion of the installation, so that the Wall Board Profiles remain safely secured to the attached surfaces.





Name Aluminium Panel Trim




Length:2.5/2.7/3 M,customizable.
Colour:silver,golod,gray And Custom Color.
Material:aliminum Alloy 6663t5
Surface theatment Silver,champagne,rose Gold,matt Black,brushed Champagne,customizable.
Punching Hole Shape Square/ Round/ Triangle or Customized.
Certificate SGS

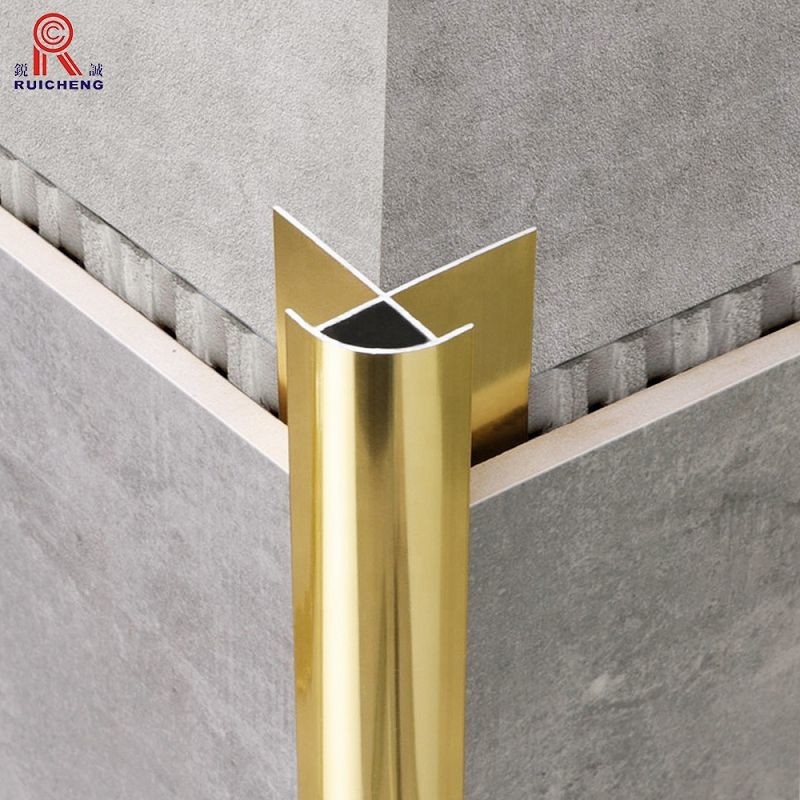

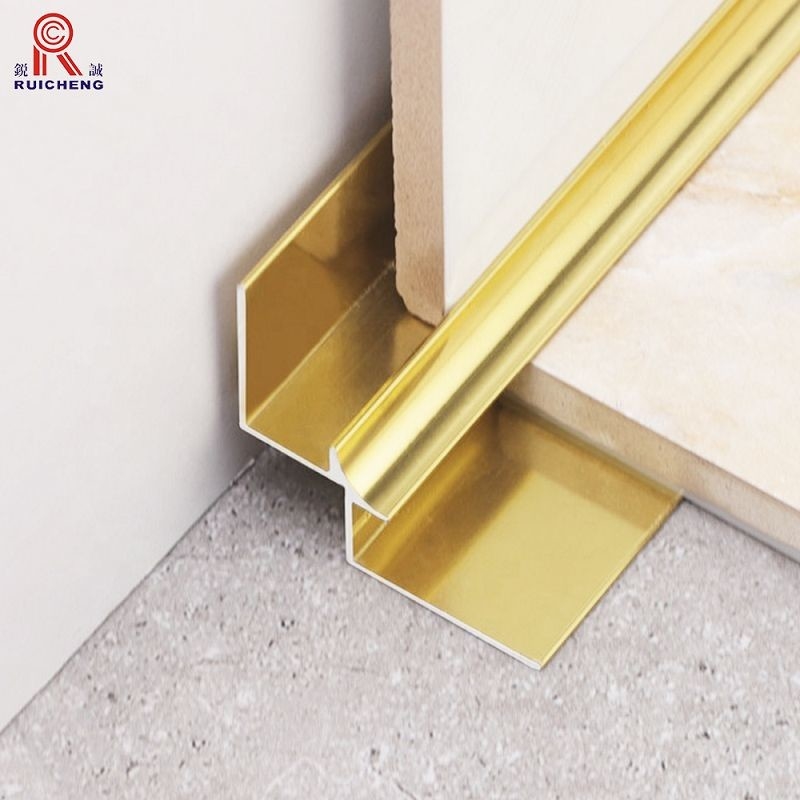

Application Protecting & Decorating The edges of tile, Marble,uv Board,glass,etc.






Corrosion Resistance,weather Resistance.
Simple And Easy For Installation.
Nice Straightness And Smoothness
OEM Are Accpetable
Corrosion Resistance,weather Resistance.
Delivery time 7-20 working days
Packing There Will be Protectibe Films and Custom Labels.

ASTM  Aluminium Wall Trim , 1mm Decorative Aluminum Edging 6663t5 Alloy 0ASTM  Aluminium Wall Trim , 1mm Decorative Aluminum Edging 6663t5 Alloy 1
ASTM  Aluminium Wall Trim , 1mm Decorative Aluminum Edging 6663t5 Alloy 2
